Rancher Navigation Links for TrilioVault Management Console

This page describes the step-by-step instructions to create a Navigation Link for the TVK Management Console on the Rancher Management Console.

Users can create a Navigation Link on the Rancher Management Console to redirect a URL of any application deployed on the Kubernetes cluster.
The are two way to place the NavLink on the Rancher UI.
1. Create a standalone TVK UI NavLink on the left panel
2. Create a NavLink under a group and the Group will be placed on the left panel
Here are the instructions to create a Navigation Link (NavLink):
1. Create a standalone TVK UI NavLink on the left panel:

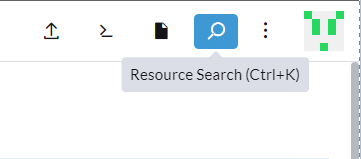

Click on Search icon on top-right corner on Rancher Server Console

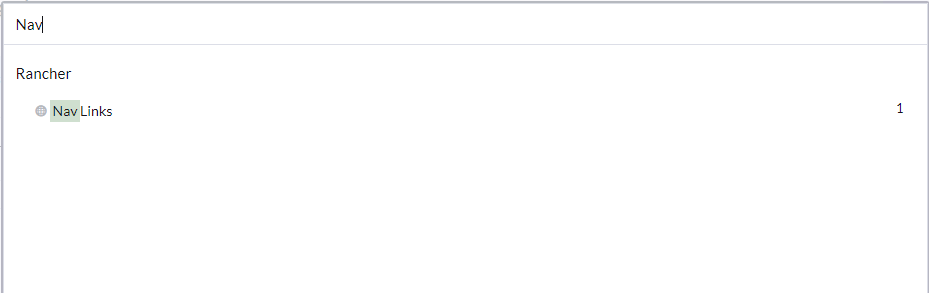

Search the NavLinks to create a CR
apiVersion: ui.cattle.io/v1
kind: NavLink
metadata:
  name: triliovault-for-kubernetes-management-console
spec:
  description: TVK Management Console
  iconSrc: null
  label: TVK Management Console
  toURL: http://k3s-rke2-tvk.demo.trilio.io:31616/
In above yaml snippet:
metadata.name : Name of the NavLink
spec.description : Description of the NavLink
spec.iconSrc : Image or icon of the branding logo of the application or the company
spec.label : The label of the URL to be visible on the Rancher UI
spec.toURL: Complete URL of the application to be redirected to. The host name is k8s-triliovault-minion ingress hosts URL. The port is the NodePort of the k8s-triliovault-ingress-gateway service.
In above yaml, user can also provide service object information instead of toURL. For the details check the Rancher documentation
Copy the above yaml and create the new NavLink.

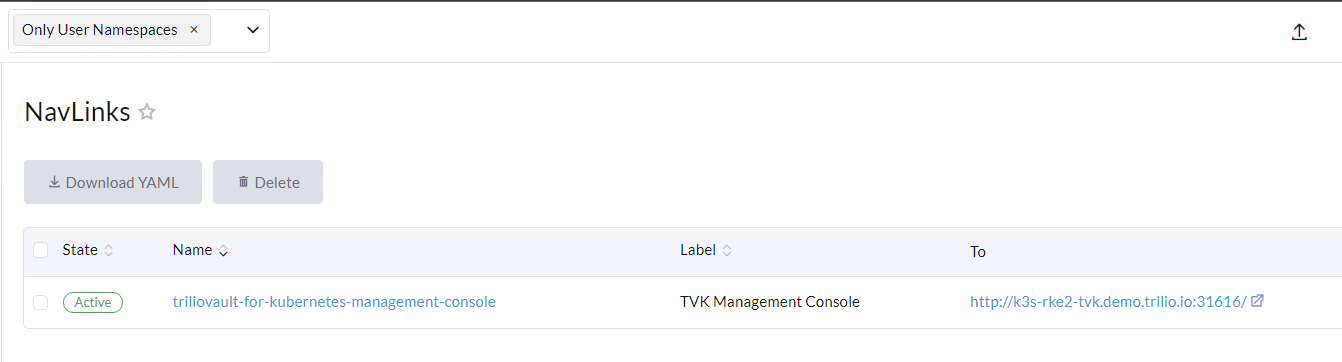

NavLink created using yaml

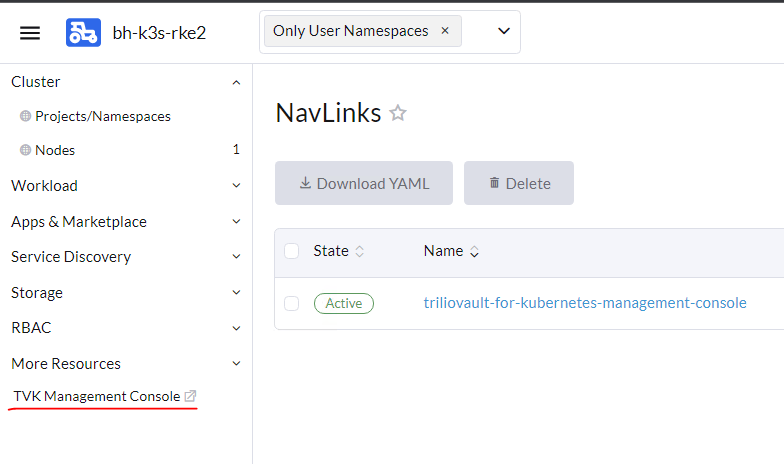

Navlink for TVK UI is present in left pane
2. Create a TVK UI NavLink under a group
Users can place the TVK UI URL under a group and then access it from the group dashboard:
apiVersion: ui.cattle.io/v1
kind: NavLink
metadata:
  annotations:
    key: triliovault-for-kubernetes-management-console
  labels:
    key: tvk-management-console
  name: tvk-mgmt-console-image
spec:
  description: TVK Backup & Restore Management Console
  group: Monitoring DashBoards
  iconSrc: <Copy the base64 encoded image and paste here>
  label: TVK Management Console
  toURL: http://k3s-rke2-tvk.demo.trilio.io:31616/

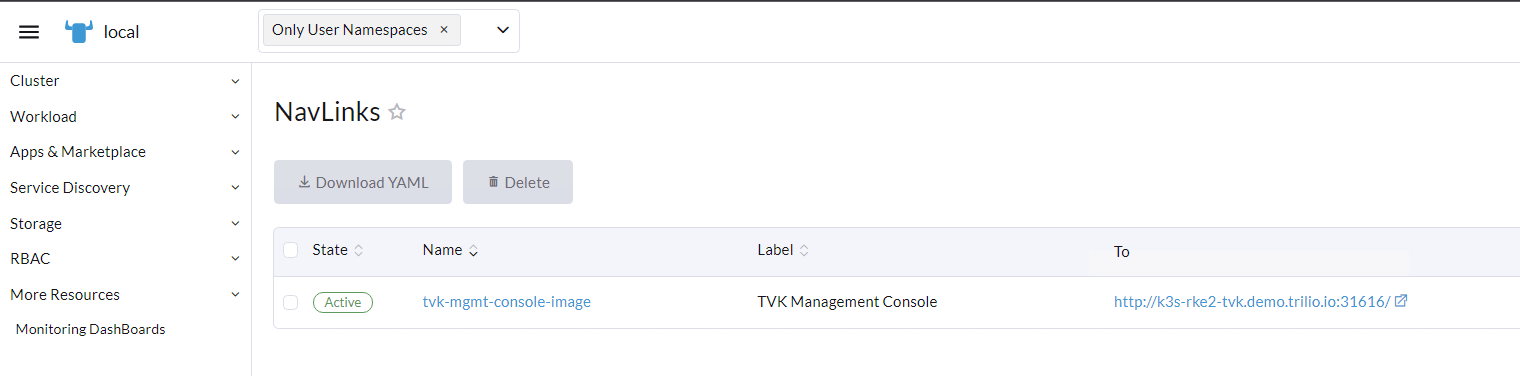

Navlink create using group of Monitoring Dashboard

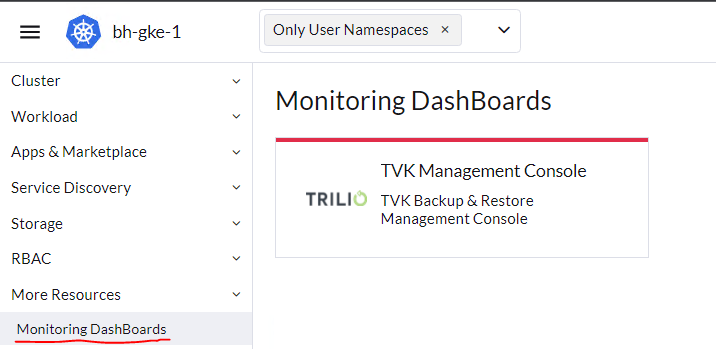

NavLink visible under a group
Once the user clicks on the NavLink, it will be redirected to the TVK UI.
Could not load image
TVK UI is accessible
For more information you can follow the documentation from Rancher as well.
