Targets

This page provides users with an overview of all the targets available withing a selected cluster.

PreviousBackup Plans - ActionsNextCreate New Target

Last updated 6 months ago

Was this helpful?

Accessing Targets

  1. Log in to the T4K Management Console.

  2. From the left panel menu, click Backup & Recovery.

  3. Select one of your clusters from the left panel menu, which displays a dropdown menu for you to select from.

  4. From this dropdown menu, select Targets.

  5. From the page displayed, create new targets or take actions associated with existing targets. Refer to the following image and descriptions in the associated table.

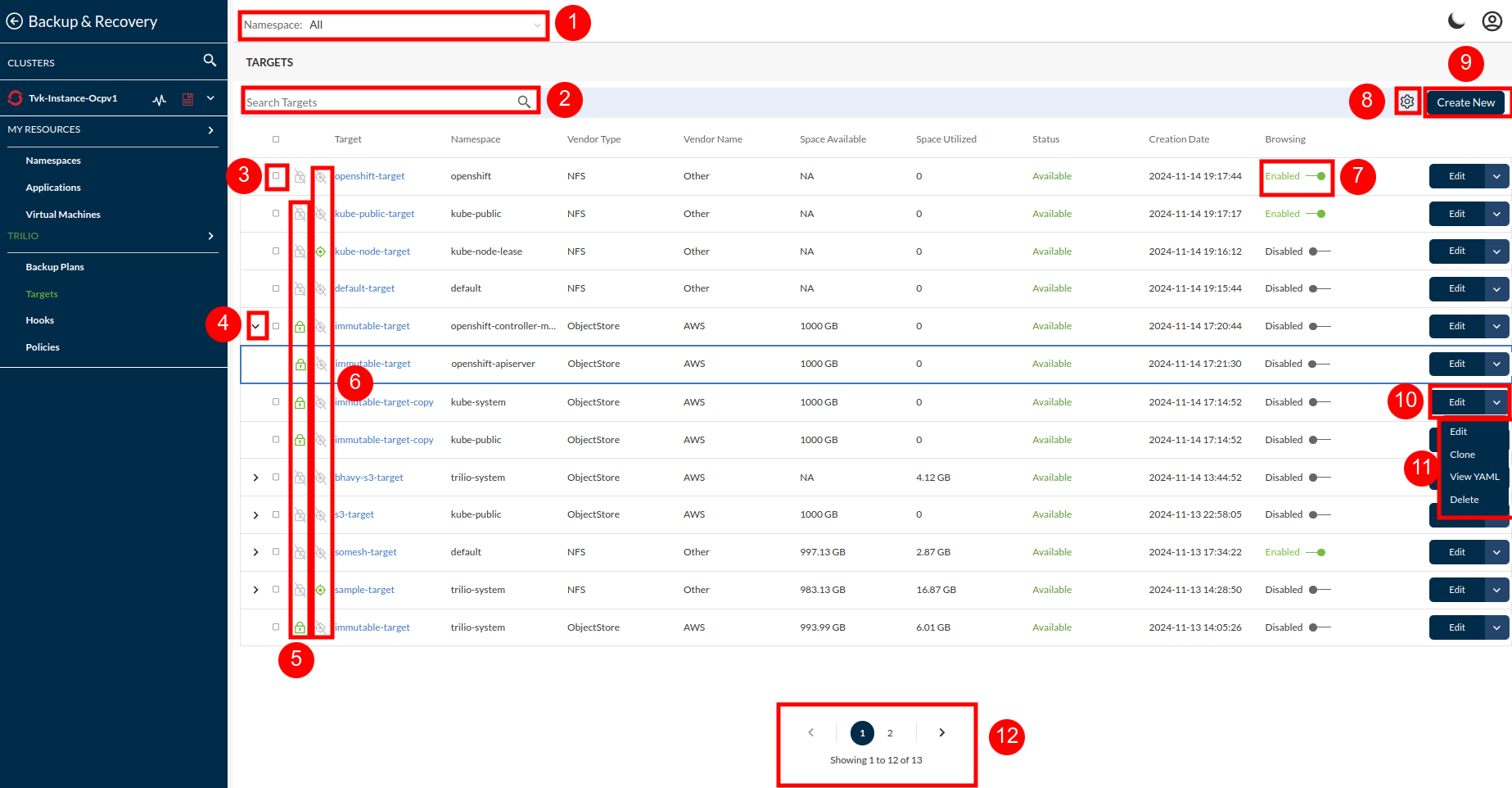

Targets Overview

Field No.
Field/Button Name
Description

1

Namespace selector

This dropdown lists all namespaces in the selected cluster alphabetically. Click one or all to display the selection.

2

Search

The search field may be used to find the targets that you want to display. The list filters as you type.

3

Selector checkboxes

Checkboxes may be selected/deselected to facilitate the execution of comparing two YAML files associated with different backups. You cannot select more than two to compare.

4

Dupplicate Targets

This shows the cloned target in backupplan flow with same credential hash .

5

Immutable icon

This icon shows whether a target is immutable or not.

6

Event Target icon

This icon shows whether event target is enabled or disabled.

7

Toggle Browsing

This toggle allows enabling and disabling of target Browsing .

8

Setting icon

This is to adjust the columns visibility in listing.

9

Create New

10

Edit

This button allow editing of target.

11

Actions

This button displays a dropdown menu of further actions that can be taken in relation to a target. Menu options are:

  • Launch Browser (only available if browsing is enabled during target creation, or subsequent edit)

  • Edit

  • Clone

  • View YAML

  • Delete

12

Pagination

This is to navigate to a particular page number.

Create a new backup plan by clicking this button. Refer to:

Refer to:

Create New Target
Targets - Actions
Target Overview Page
