Applications

This page provides users with an overview of all the applications associated with a selected cluster.

PreviousNamespaces - Bulk ActionsNextApplications - Actions

Last updated 5 months ago

Was this helpful?

The Applications page provides a top-level overview of the cluster Applications and provides links to take actions for each. When a cluster is selected, this page displays the backup, snapshot and restore options available for all Applications within the selected cluster.

Accessing Applications

  1. Log in to the T4K Management Console.

  2. From the left panel menu, click Backup & Recovery.

  3. Select one of the clusters from the left panel menu to display a dropdown menu.

  4. From this dropdown menu, select Applications.

  5. From the page displayed, choose the option to configure or action. Refer to the following image from Applications Overview section.

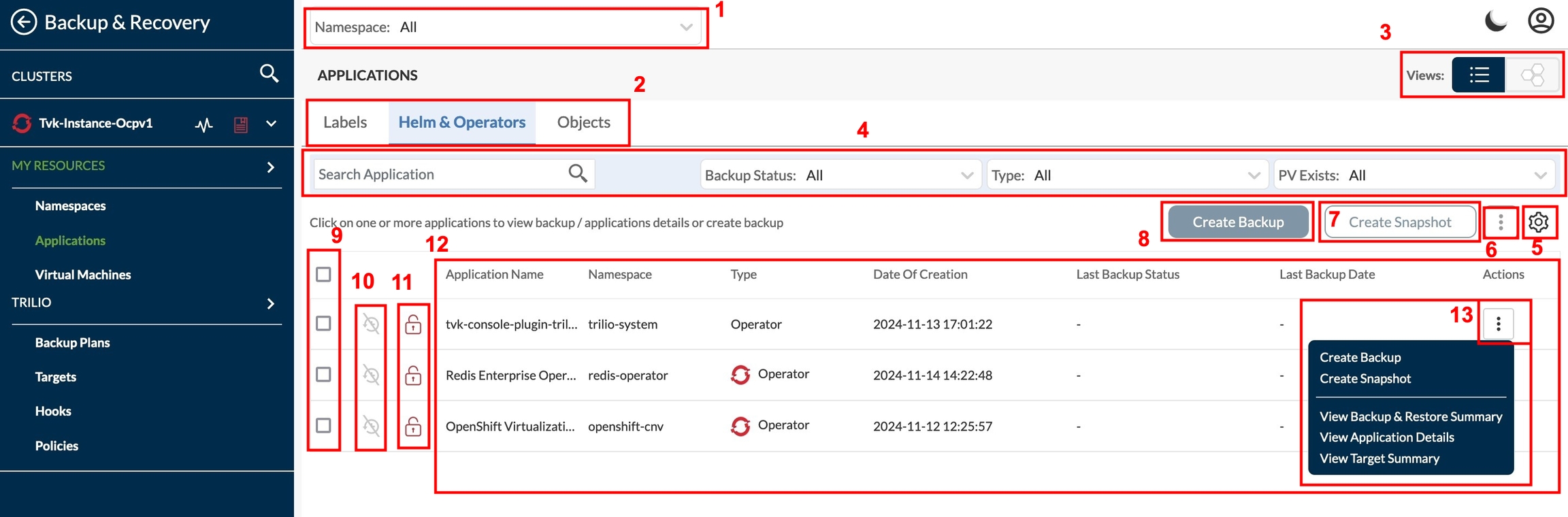

Applications Overview

Applications can be of the following types: Labels, Helm & Operator, or Objects. On the Applications page, these three types are arranged in separate tabs.

Below is an overview of the Helm & Operator tab only. The other two tabs are not detailed as they are almost identical, with the exception of a couple of column headings and the filtering options. The Actions and Bulk Actions are identical for all three tabs.

Field No.
Field/Button Name
Description

1

Namespace selector

This dropdown lists all namespaces in the selected cluster alphabetically. Click one or all to display the selection.

2

Application type

Applications can be of the Labels, Helm & Operator, or Objects types, which are arranged in these three tabs. Clicking each tab causes the page content to change slightly to reflect the choice. However the changes are very minor and all possible actions are the same for each tab.

3

Views

View applications in list or honeycomb format.

4

Filters and Search

The search field may be used to find the application that you want to display. The list filters as you type. Alternatively, use the filter dropdown fields to narrow your search for applications of a certain status, type or PV Status.

5

Setting icon

This used to manage the columns visibility in listing.

6

Bulk Action

7

Create Snapshot

This used to initiate Snapshot creation for selected Applications.

8

Create Backup

This used to initiate Backup creation for selected Applications.

9

Checkbox

Checkboxes may be selected/deselected to facilitate the execution of bulk actions. Use the table header row checkbox to select/deselect all listed applications.

10

Schedule icon

This icon shows whether an application has had a schedule configured or not.

11

Protection icon

This icon shows whether an application has Backup or Snapshot. It means it is protected by Backup and a Snapshot.

12

Listing Detail

This used to show the detail of every Applications in list format.

13

Actions

This button displays a dropdown menu of further actions that can be taken in relation to a single application. Menu options are: - Create Backup

Refer to for Namespaces, which is almost identical to Applications.

- Create Snapshot - View Backup & Restore summary - View Application details - View Target summary Refer to for Namespaces, which is almost identical to Applications.

Namespaces - Bulk Actions
Namespaces - Actions
Applications / Helm & Operator tab
