Virtual Machines

This page provides users with an overview of virtual machines

PreviousApplications - Bulk ActionsNextVirtual Machine -Actions

Last updated 4 months ago

Was this helpful?

Accessing Virtual Machines

  1. Log in to the T4K Management Console. From the left panel menu, click Backup & Recovery.

  2. Select one of the clusters from the left panel menu, which display a dropdown menu click on Virtual Machines.

  3. From the page displayed, Create Backup , Create Snapshot or take actions associated with existing Virtual Machines.

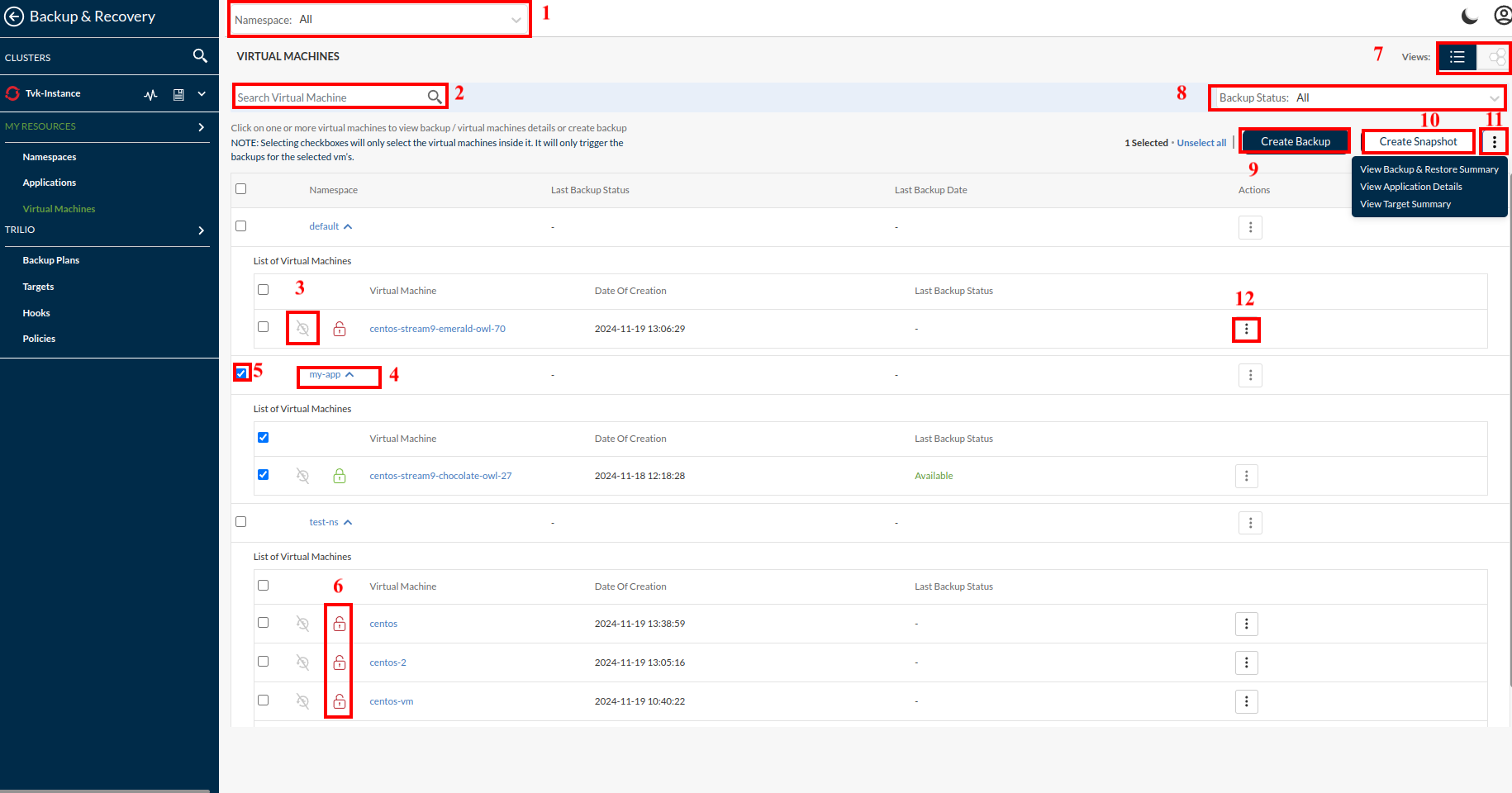

Field No.
Field/Button Name
Description

1

Namespace Selector

This dropdown list all the namespaces in the selected cluster alphabetically. Click one or all to display the selection.

2

Search

The search field can be used to find virtual machines to display. The list filters automatically as text is entered.

3

Scheduling Icon

This icon shows whether a virtual machine has had a schedule configured or not.

4

Namespace

Virtual machines are organized by namespaces, with all virtual machines within a namespace listed under its corresponding group.

5

Checkbox

Checkboxes may be selected/deselected to facilitate the execution of bulk actions or to create a backup/snapshot. Use the table header row checkbox to select/deselect all listed virtual machine.

6

Protection icon

This icon shows whether a virtual machine has Backup or Snapshot. It means it is protected by Backup and a Snapshot.

7

Views

View virtual machines in list or honeycomb format.

8

Filter by status

Filter virtual machine based on status. - All - Protected - Unprotected

9

Create Backup

This button is used in combination with checkboxes. Select one or more virtual machines and click the Create Backup button to proceed.

10

Create snapshot

This button is used in combination with checkboxes. Select one or more virtual machines and click the Create Snapshot button to proceed.

11

Bulk Action

12

Actions

This button displays a dropdown menu of further actions that can be taken in relation to a virtual machine. Menu options are: - Create Backup - Create Snapshot - View Backup & Restore summary - View Virtual Machine details - View Target summary Refer to

Refer to

Virtual Machine - Bulk Actions
Virtual Machine List
