Namespaces

This page provides users with an overview of all the namespaces associated with a selected cluster.

PreviousBackup & RecoveryNextNamespaces - Actions

Last updated 5 months ago

Was this helpful?

This is the default landing page for Backup & Recovery. It provides a top-level overview of all your cluster Namespaces and provides links to take actions for each. When a cluster is selected, this page displays your backup and restore options available for all Namespaces within the selected cluster.

Accessing Namespaces

  1. Log in to the T4K Management Console.

  2. From the left panel menu, click Backup & Recovery.

  3. Select one of your clusters from the left panel menu, which displays a dropdown menu for you to select from.

  4. From this dropdown menu, select Namespaces.

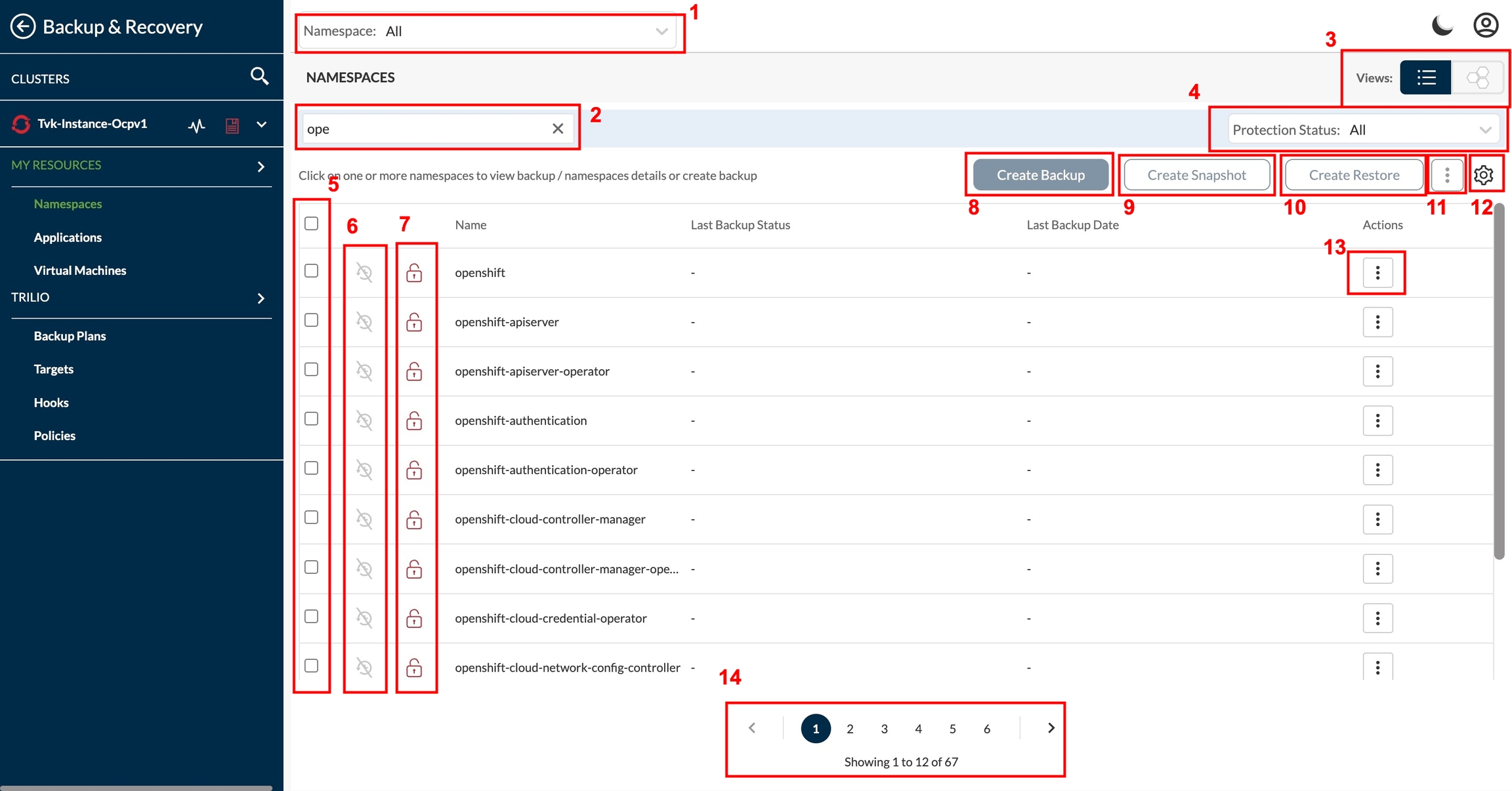

  5. From the page displayed, choose what you want to configure or action. Refer to the following image and descriptions in the associated table.

Namespaces Overview

Field No.
Field/Button Name
Description

1

Namespace selector

This dropdown lists all namespaces in the selected cluster alphabetically. Click one or all to display the selection.

2

Search Namespace

A search field to find the namespace that you want to display. The list filters as you type.

3

Views

View namespaces in list or honeycomb format.

4

Protection Status

This dropdown enables the list to be filtered by protection status; e.g. Protected, Unprotected, or All.

5

Selector checkboxes

Checkboxes may be selected/deselected to facilitate the execution of bulk actions. Use the table header row checkbox to select/deselect all listed namespaces.

6

Schedule icon

This icon shows whether a namespace has had a schedule configured or not.

7

Protected icon

An indicator of whether the namespace is protected by backups/ Snapshots or not.

8

Create Backup

9

Create Snapshot

10

Create Restore

11

Bulk Actions

12

setting

This is to adjust the columns visibility in listing.

13

Actions

This button displays a dropdown menu of further actions that can be taken in relation to a single cluster. Menu options are: - Create Backup

14

Pagination

This is to navigate to a particular page number.

This is to create a Backup of selected Namespace. Refer

This is to create a Snapshot of selected Namespace. Refer

This is to create a Restore of last Available Snapshot or Backup of that Namespace. Refer

Refer to .

- Create Snapshot - Create Restore - View Backup & Restore summary - View Namespace details - View Target summary Refer to .
