Management Console

Learn about using with Trilio for Kubernetes with the Management Console

To get started with Trilio via the management console in your environment, the following steps must be performed:

Prerequisites

  1. Authenticate access to the Management Console (UI). Refer toUI Authentication.

  2. Configure access to the Management Console (UI). Refer toConfiguring the UI.

Steps Overview

  1. Install a compatible CSI Driver

  2. Create a Backup Target - A location where backups will be stored.

  3. Create a retention policy (Optional) - To specify how long to keep the backups for.

  4. Run Example:

    • Label Example

    • Helm Example

    • Operator Example

    • Virtual Machine Example

    • Namespace Example

Step 1: Install a CSI Driver

Skip this step if your environment already has a CSI driver installed with snapshot capability.

Trilio for Kubernetes requires a compatible Container Storage Interface (CSI) driver that provides the Snapshot feature.

You should check the Kubernetes CSI Developer Documentation to select a driver appropriate for your backend storage solution. See the selected CSI driver's documentation for details on the installation of the driver in your cluster.

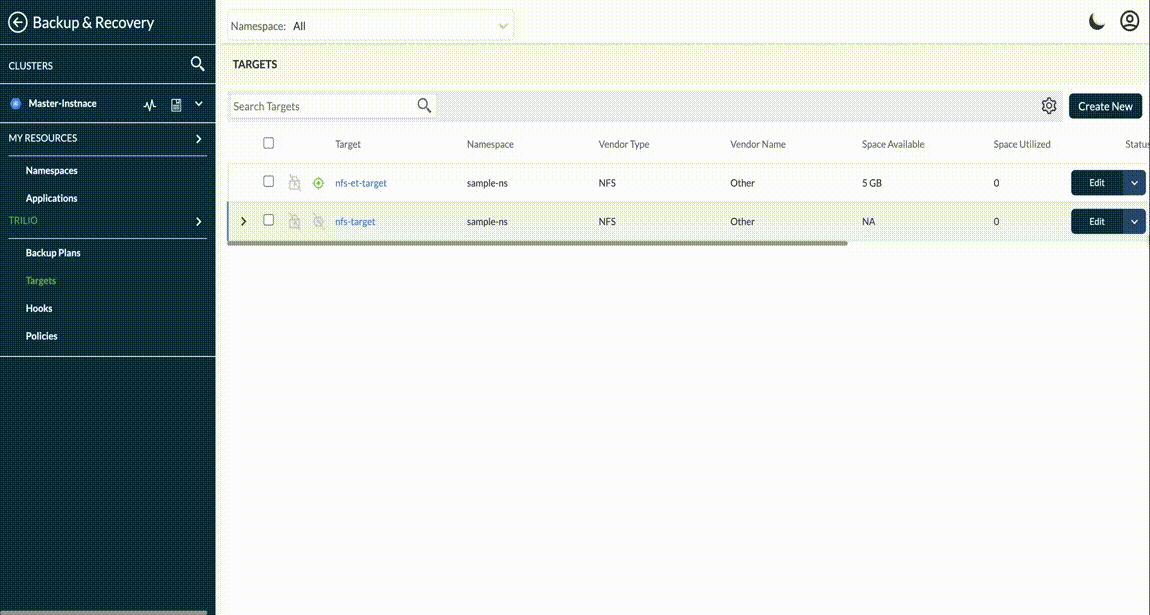

Step 2: Create a Target

Create a secret containing the credentials for data stores to store backups. An example is provided below:

apiVersion: v1
kind: Secret
metadata:
  name: sample-secret
type: Opaque
stringData:
  accessKey: AKIAS5B35DGFSTY7T55D
  secretKey: xWBupfGvkgkhaH8ansJU1wRhFoGoWFPmhXD6/vVD

You can either create the secret using the above YAML definition or use the management console to create it as part of the workflow for creating the backup target.

Please use one of the Target examples provided in the Custom Resource Definition section as a template for creating an NFS, Amazon S3, or any S3-compatible storage target.

Supported values for S3 vendors include:

"AWS", "RedhatCeph", "Ceph", "IBMCleversafe", "Cloudian", "Scality", "NetApp", "Cohesity", "SwiftStack", "Wassabi", "MinIO", "DellEMC", "Other"

An Amazon S3 target example is provided below:

Note: With the above configuration, the target would get created in the current user namespace unless specified. Also, additional information on Bucket permissions can be found here: AWS S3 Target Permissions

Step 3: Create a Retention Policy (Optional)

While the example backup custom resources created by following this Getting Started page can be deleted manually via kubectl commands, Trilio also provides backup retention capability - to automatically delete the backups based on defined time boundaries.

A retention policy is referenced in the backupPlan CR.

Note: With the above configuration, the policy would get created in the default namespace unless specified.

Step 4: Run Example

The following section will cover creating a sample application and backup/restore of it via labels, Helm, Operator, or a namespace-based backup.

More details about CRDs and their usage/explanation can be found in the Custom Resource Definition Section.

Note:

  1. Backup and BackupPlan should be created in the same namespace.

  2. For the restore operation, the resources will get restored in the namespace where restore CR is created.

  3. If there is more than one backup created for the same application, users can select any existing backup information to perform the restore.

Step 4.1: Label Example

The following sections will create a sample application (tag it with labels), backup the application via labels, and then restore the application.

The following steps will be performed.

  1. Create a sample MySQL application

  2. Create a BackupPlan CR using a management console that specifies the MySQL application via labels

  3. Create a Backup CR using the management console with a reference to the BackupPlan CR created above

  4. Create a Restore CR using the management console with a reference to the Backup CR created above.

Create a Sample Application

Use the following screenshot to assist in the deployment of the MySQL application using the label.

Create a BackupPlan

Create a BackupPlan CR by selecting the application created in the previous step via UI labels in the same namespace where the application resides.

Create a Backup

Create a Backup CR using UI to protect the BackupPlan. Type of the backup can be either full or incremental.

Note: The first backup into a target location will always be a Full backup.

Restore the Backup/Application

Finally create the Restore CR using UI to restore the Backup, in the same or different namespace using the Backup. In the example provided below, MySQL-label-backup is being restored into the "restore" namespace.

Restore to the same cluster but a different namespace

Note: If restoring into the same namespace, ensure that the original application components have been removed. If restoring into another namespace in the same cluster, ensure that the resources that cannot be shared like ports should be freed or transformation should be used to avoid conflict. More information about transformation can be found at Restore Transformation.

Restoring to a different cluster

Note: If restoring to another cluster (migration scenario), ensure that Trilio for Kubernetes is also running in the remote namespace/cluster. To restore into a new cluster (where the Backup CR does not exist), the same target should be created and Target Browsing should be enabled to browse the stored backups.

Step 4.2: Helm Example

The following sections will create a sample application via Helm, backup the application via Helm selector fields and then restore the application using management UI.

The following steps will be performed.

  1. Create a cockroachdb instance using Helm

  2. Create a BackupPlan CR using a management console that specifies the cockroachdb application to protect.

  3. Create a Backup CR using the management console with a reference to the BackupPlan CR created above.

  4. Create a Restore CR using the management console referencing the Backup CR created above.

Create a sample application via Helm

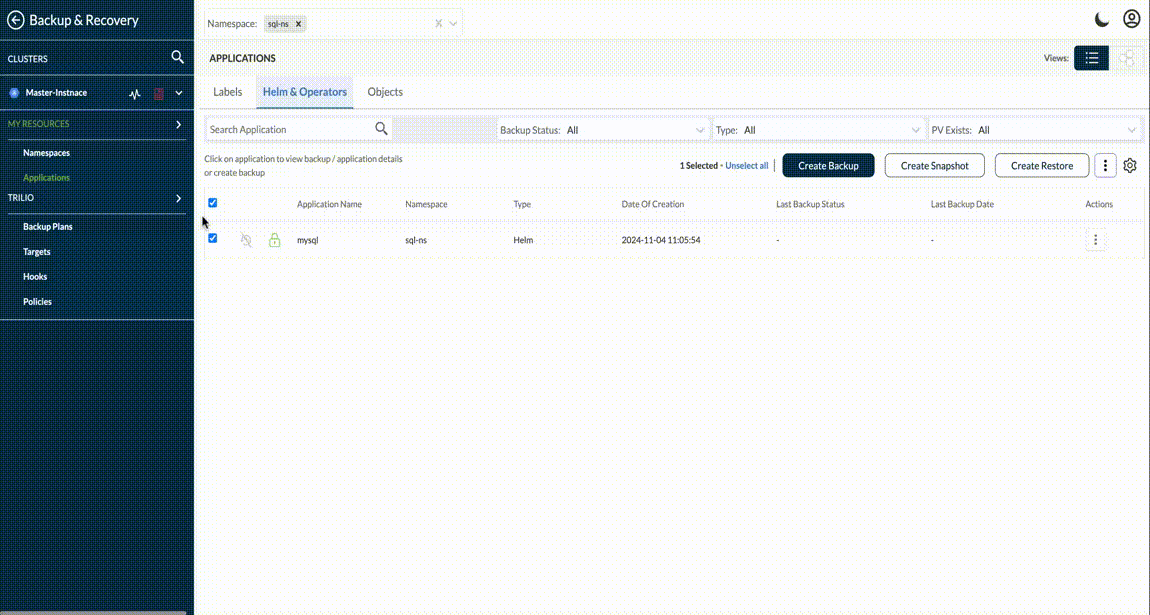

Use the following screenshot to assist in the deployment of the "Cockroachdb" application using the helm chart.

Create a BackupPlan

Use the following to create a BackupPlan. Ensure the name of the release you specify matches the output from the helm ls command in the previous step.

Create a Backup

Use the following screenshot to create a backup CR

Restore Backup/Application

After the backup has been completed successfully, create a Restore CR to restore the application in the same or different namespace where BackupPlan and Backup CRs are created.

Note: If restoring into the same namespace, ensure that the original application components have been removed. Especially the PVC of the application is deleted.

Restore to the same cluster but a different namespace

Note: If restoring into another namespace in the same cluster, ensure that the resources which cannot be shared like ports should be freed or transformation should be used to avoid conflict. More information about transformation can be found at Restore Transformation.

Before restoring the app, we need to clean the existing app from the same cluster. This is required cluster-level resources of the app can create conflict during the restore operation.

helm delete cockroachdb-app

Restore to the different cluster

Note: If restoring to another cluster (migration scenario), ensure that Trilio for Kubernetes is also running in the remote namespace/cluster. To restore into a new cluster (where the Backup CR does not exist), the same target should be created and Target Browsing should be enabled to browse the stored backups.

After following the above note follow the instructions same as Restore the backup/application by label section to choose the namespace backup stored at the target repository and perform the helm backup restore.

Step 4.3: Operator Example

The following steps will be performed.

  1. Install a sample etcd Operator

  2. Create an etcd cluster

  3. Create a BackupPlan CR using the management console that specifies the etcd application to protect.

  4. Create a Backup CR using the management console with a reference to the BackupPlan CR created above

  5. Create a Restore CR using the management console referencing the Backup CR created above.

We are demonstrating standard 'etcd-operator' here. First, we need to deploy the operator using its helm chart. Then we need to deploy the etcd cluster. Follow Install etcd-operator and Create an etcd cluster using the following yaml definition section to install and create an etcd cluster.

Create a BackupPlan

Create a 'BackupPlan' resource to protect 'etcd-operator' and it's clusters. Use the management console to select the etcd-operator auto-discovered by T4K and shown under the Operator section.

Create a Backup

Take a backup of the above 'BackupPlan'. Use the following screenshot to proceed and create a 'Backup' resource.

Restore the Backup/Application

  • After the backup completes successfully, you can perform the Restore of it.

  • To restore the etcd-operator and its clusters from the above backup, use the screenshots shown below.

Note: If restoring into the same namespace, ensure that the original application components have been removed.

Restore to the same cluster but a different namespace

Note: If restoring into another namespace in the same cluster, ensure that the resources that cannot be shared, for example, ports - should be available or transformation should be used to avoid conflict. More information about transformation can be found at Restore Transformation.

Before restoring the app, we need to clean the existing app from the same cluster. This is required cluster-level resources of the app can create conflict during the restore operation.

Step 4.4: Virtual Machine Example

The following sections will describe the steps to create a sample Virtual Machine, backup the Virtual Machine like any other Helm and Operator application, and then restore the Virtual Machine using the management UI.

The following steps will be performed.

  1. Create a Virtual Machine using OpenShift Virtualization Operator.

Users can follow the Red Hat demo here to learn how to deploy a VM.\

  1. Create a BackupPlan CR using a management console that specifies the centos9 Virtual Machines to protect.

  2. Create a Backup CR using the management console referencing the BackupPlan CR created in step 1.

  3. Create a Restore CR using the management console again referencing the Backup CR created in step 1.

Create a Backupplan

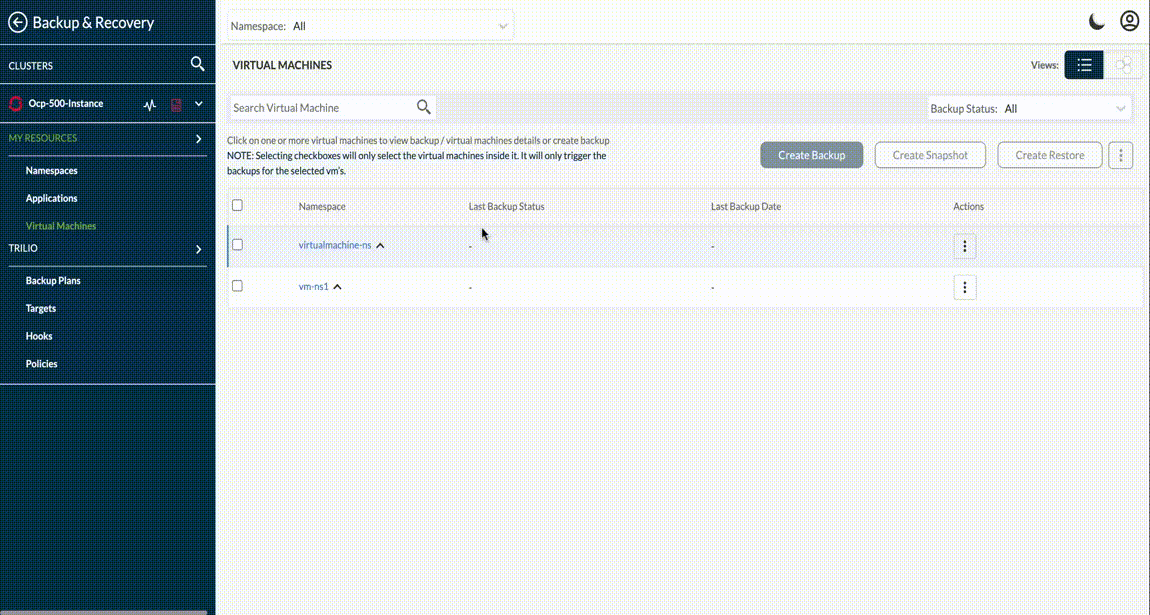

Use the following screenshot to assist in the creation of a BackupPlan for the Virtual Machine, ensuring that the name of the Virtual Machine you specify matches the VM created in the previous step.

Create a Backup

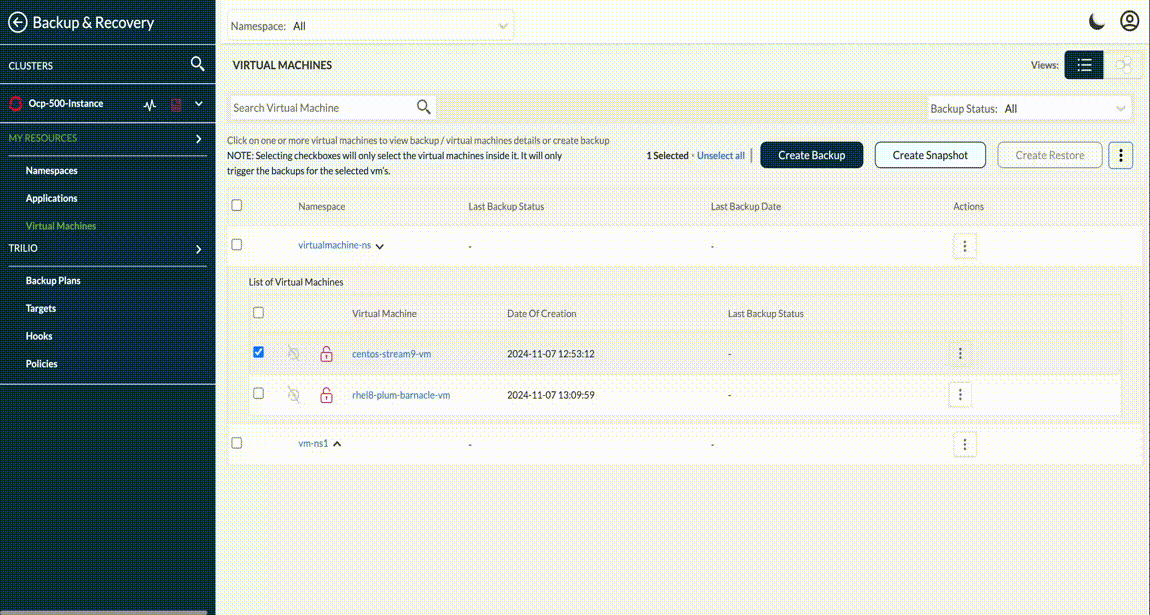

Create a backup CR as shown in the following screenshots.

Restore Backup/Virtual Machine

Restore to the same cluster

After the backup has been completed successfully, create a Restore CR to restore the Virtual Machine in the same or different namespace where BackupPlan and Backup CRs are created.

Restore to the different cluster

Note: If restoring to another cluster (migration scenario), ensure that Trilio for Kubernetes is also running in the remote namespace/cluster. To restore into a new cluster (where the Backup CR does not exist), the same backup target should be created and Target Browsing should be enabled to browse the stored backups.

After following the above note follow the instructions same as Restore the backup/application by label section to choose the namespace backup stored at the target repository and perform the helm backup restore.

Validate the Restored Virtual Machine

Once the restore is complete, you can log in to the OpenShift Container Platform, go to the restore namespace and check that the Virtual Machine is restored correctly and is in the Running state.

Step 4.5: Namespace Example

  1. Create a namespace called 'wordpress'

  2. Use Helm to deploy a wordpress application into the namespace.

  3. Perform a backup of the namespace using the management console

  4. Delete the namespace/application from the kubernetes cluster

  5. Create a new namespace 'restore'

  6. Perform a Restore of the namespace using the management console

Create a namespace and application

Follow the Create a namespace and application section to create an application.

Create a BackupPlan

Create a backupPlan to backup the namespace using the management console

Backup the Namespace

Use the following screenshot to build the Backup CR using the management console

Restore the Backup/Namespace

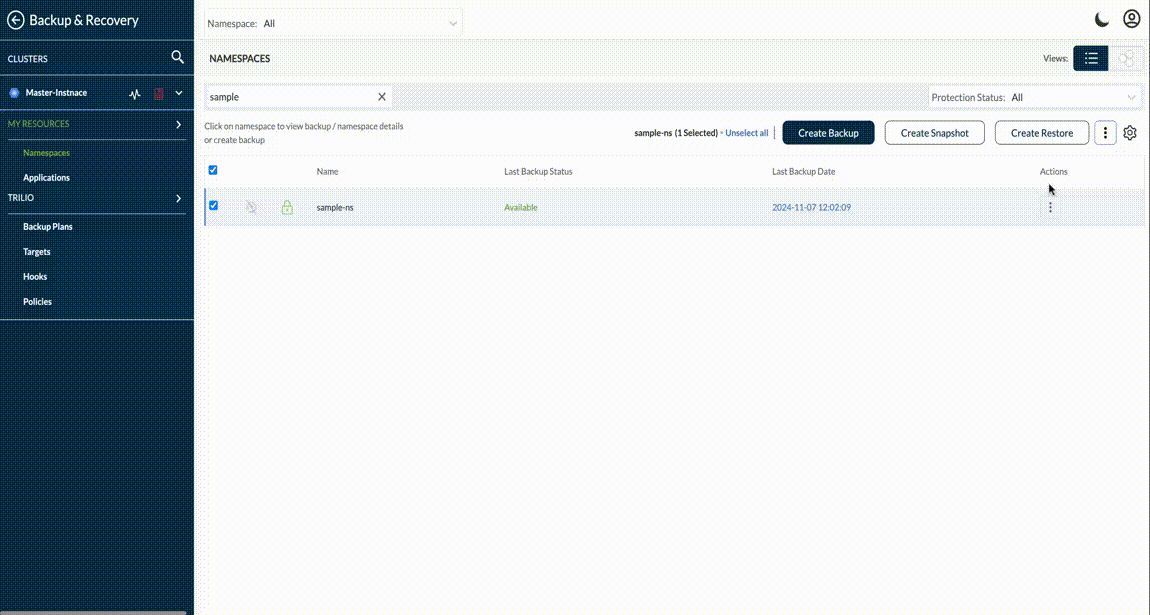

Perform a restore of the namespace backup using the management console

Restore to the same cluster but a different namespace

Note: If restoring into the same namespace, ensure that the original application components have been removed. If restoring into another namespace in the same cluster, ensure that the resources that cannot be shared like ports should be freed or transformation should be used to avoid conflict. More information about transformation can be found at Restore Transformation.

Validate Restore

Validate Application Pods

kubectl get pods -n restore
$ root@my-host:~# kubectl get pods -n restore
NAME                                    READY   STATUS    RESTARTS   AGE
k8s-demo-app-frontend-7c4bdbf9b-4hsl2   1/1     Running   0          2m56s
k8s-demo-app-frontend-7c4bdbf9b-qm84p   1/1     Running   0          2m56s
k8s-demo-app-frontend-7c4bdbf9b-xmrxk   1/1     Running   0          2m56s
k8s-demo-app-mysql-754f46dbd7-cj5z5     1/1     Running   0          2m56s

Restore to the different cluster

If you are trying to restore into a different cluster then follow the guidelines same asRestoring to a different cluster section to choose the namespace backup stored at the target repository and perform the namespace restore.
