T4K Integration with Observability Stack

The Observability Stack is a pre-packaged distribution for monitoring, logging and dashboard interfaces which can be installed into any existing Kubernetes cluster.

Introduction

The Observability Stack is a pre-packaged distribution for monitoring, logging, and dashboarding and can be installed into any existing Kubernetes cluster. It includes many of the most popular open-source observability tools with Prometheus, Grafana, Promtail**,** and Loki. The observability stack provides a straightforward, maintainable solution for analyzing server traffic and identifying potential deployment problems.

T4K Installation with Observability using Trilio Operator

To install the operator with observability enabled, run the latest helm chart with the following parameter set.

helm repo add triliovault-operator https://charts.k8strilio.net/trilio-stable/k8s-triliovault-operator
helm install tvm triliovault-operator/k8s-triliovault-operator --set observability.enabled=true

Observability Stack Configurable Parameters

The following table lists the configuration parameters of the observability stack

Parameter
Description
Default

observability.enabled

observability stack is enabled

false

observability.name

observability name for T4K integration

tvk-integration

observability.logging.loki.enabled

logging stack, loki is enabled

true

observability.logging.loki.fullnameOverride

name of the loki service

"loki"

observability.logging.loki.persistence.enabled

loki persistence storage enabled

true

observability.logging.loki.persistence.accessModes

loki persistence storage accessModes

ReadWriteOnce

observability.logging.loki.persistence.size

loki persistence storage size

10Gi

observability.logging.loki.config.limits_config.reject_old_samples_max_age

loki config, maximum accepted sample age before rejecting

168h

observability.logging.loki.config.table_manager.retention_period

loki config, how far back tables will be kept before they are deleted. 0s disables deletion.

168h

observability.logging.promtail.enabled

logging stack, promtail is enabled

true

observability.logging.promtail.fullnameOverride

name of the promtail service

"promtail"

observability.logging.promtail.config.clients.url

loki url for promtail integration

observability.monitoring.prometheus.enabled

monitoring stack, prometheus is enabled

true

observability.monitoring.prometheus.fullnameOverride

name of the prometheus service

"prom"

observability.monitoring.prometheus.server.enabled

prometheus server is enabled

true

observability.monitoring.prometheus.server.fullnameOverride

name of prometheus server service

"prom-server"

observability.monitoring.prometheus.server.persistentVolume.enabled

prometheus server with persistent volume is enabled

false

observability.monitoring.prometheus.kubeStateMetrics.enabled

prometheus kube state metrics is enabled

false

observability.monitoring.prometheus.nodeExporter.enabled

prometheus node exporter is enabled

false

observability.monitoring.prometheus.pushgateway.enabled

prometheus push gateway is enabled

false

observability.monitoring.prometheus.alertmanager.enabled

prometheus alert manager is enabled

false

observability.visualization.grafana.enabled

visualization stack, grafana is enabled

true

observability.visualization.grafana.adminPassword

grafana password for admin user

"admin123"

observability.visualization.grafana.fullnameOverride

name of grafana service

"grafana"

observability.visualization.grafana.service.type

grafana service type

"ClusterIP"

Check the observability stack configuration by running the following command:

kubectl get pods -n <install_ns>

promtail-2zpcv                                              1/1     Running            0          2m16s
grafana-554cb4f55-q4q59                                     3/3     Running            0          2m15s
prom-server-786b8cf897-nglhh                                2/2     Running            0          2m15s
k8s-triliovault-operator-85dfc877b8-5xqx9                   1/1     Running            0          2m15s
loki-0                                                      1/1     Running            0          2m15s
k8s-triliovault-admission-webhook-96db687bb-wnfh7           1/1     Running            0          62s
k8s-triliovault-control-plane-6b986c8fb9-zjbnj              2/2     Running            0          62s
k8s-triliovault-exporter-7b98cb7678-wxwvx                   1/1     Running            0          62s
k8s-triliovault-ingress-nginx-controller-57b777f45b-dnjkv   1/1     Running            0          62s
k8s-triliovault-web-85c79c9c4f-djqqz                        1/1     Running            0          62s
k8s-triliovault-web-backend-5c8c67c548-pcgvl                1/1     Running            0          62s

View Logs From T4K UI

  1. Login to T4K UI with preferred authentication

  2. Select "Launch Event Viewer" on any required service or application

  1. On click on "Launch Event Viewer" option, user will be redirected to Logs visibility page.

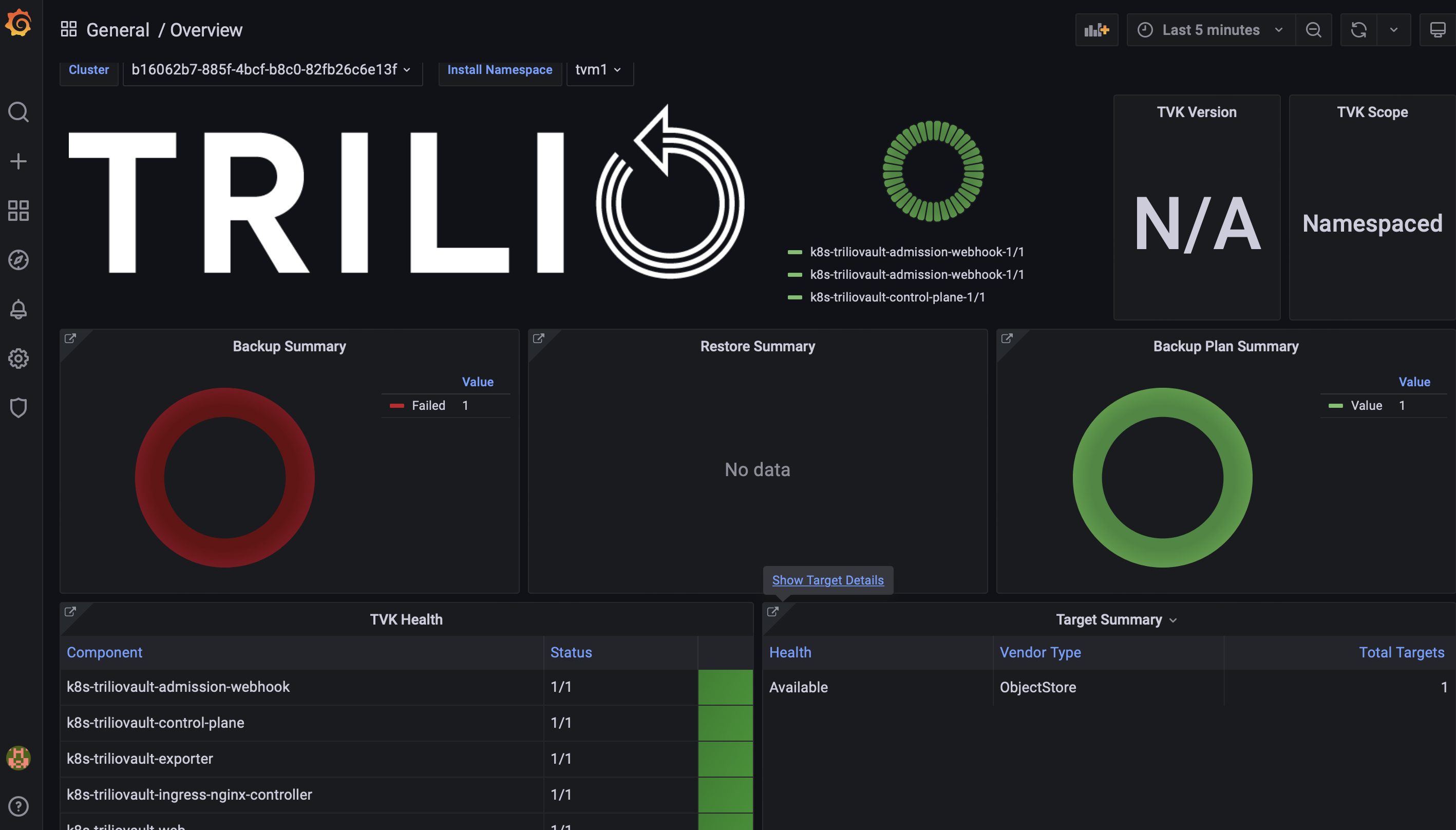

Accessing Grafana Dashboards

Grafana Endpoint : http://<TVK_IP>/grafana

Login with default grafana credentials.
username: admin
password: admin123

if a custom path is configured then:

Grafana Endpoint : http://<TVK_IP>/<custom-path>/grafana
