TVK Integration with Slack using BotKube
This section provides step by step instructions to install and configure BotKube to monitor TVK resources from Slack along with other native Kubernetes resources.

Introduction

In today's world, it's imperative to be able to receive notifications for your Kubernetes environments into communication and notification tools of choice. Slack is a new-age communication tool leveraged by a lot of different teams and organizations today. In order to keep a consistent user experience across ecosystem tools leveraged by TVK users, notifications can be supported within Slack for TVK resources through BotKube.
This page guides you with detailed instructions to install BotKube on a Kubernetes cluster, configure it to integrate with Slack, and monitor TVK resources to provide notifications around TVK activity within Slack channels directly.

What is BotKube

BotKube is a messaging bot for monitoring and debugging Kubernetes clusters. It can be integrated with multiple messaging platforms like - Slack, Mattermost, Microsoft Teams, Discord to help you monitor TVK resources and other Kubernetes resources.

Install and configure BotKube with Slack

Install BotKube App to Slack workspace

  1. 1.
    Search for the BotKube application in the Apps section on Slack, install the application using the Add to Slack button provided.
  2. 2.
    After you authorize the application, you will get a BOT Access token. Note down this token as it will be required during deployment of BotKube backend on Kubernetes cluster.

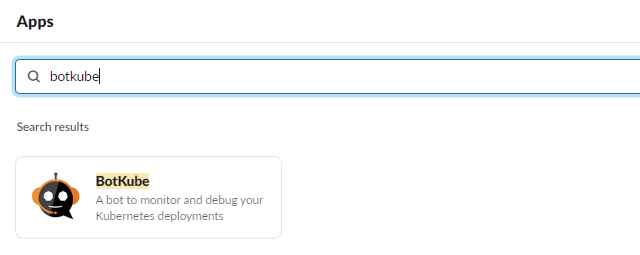

Search and install BotKube application on Slack

Add BotKube App as a user to Slack Channel

Once the BotKube application is installed to the Slack workspace, you can see BotKube user (@Botkube) present. Add this Botkube user to your slack channel from where you want to monitor the TVK resources.

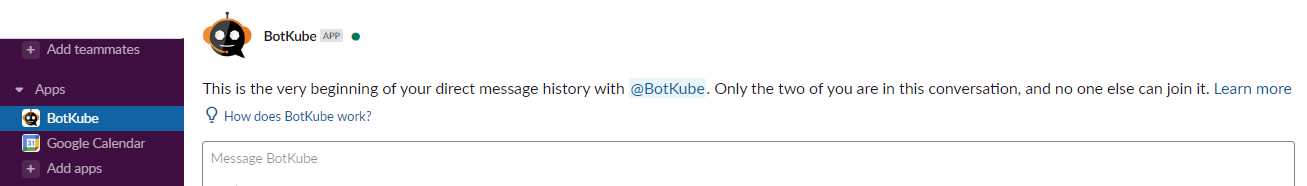

BotKube user in Slack workspace

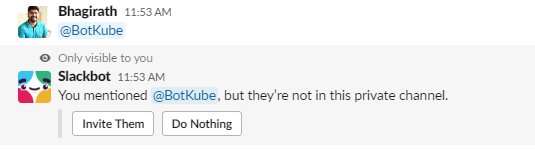

Invite the BotKube user to Slack channel

Install BotKube backend in Kubernetes Cluster

  1. 1.
    Add infracloudio chart repository to the Kubernetes cluster
helm repo add infracloudio https://infracloudio.github.io/charts
helm repo update
2. Install BotKube backend with required input parameters to configure Slack communication
helm install --version v0.12.1 botkube --namespace botkube \
--set communications.slack.enabled=true \
--set communications.slack.channel=<SLACK_CHANNEL_NAME> \
--set communications.slack.token=<xoxb-SLACK_API_TOKEN_FOR_THE_BOT> \
--set config.settings.clustername=<K8S_CLUSTER_NAME> \
--set config.settings.kubectl.enabled=<ALLOW_KUBECTL_true_or_false>\
--set image.repository=infracloudio/botkube \
--set image.tag=v0.12.1 \
infracloudio/botkube
3. Verify that the botkube controller pod is in running state
kubectl get pod -n botkube
NAME READY STATUS RESTARTS AGE
botkube-6fdf477b-gskb7 1/1 Running 9 12d
After the above installation with default configuration, BotKube will watch all the resources in all the namespaces for create, delete and error events for configured Kubernetes cluster.

Configure TVK Resource Monitoring

  1. 1.
    Along with default configurations, we will update the botkube-configmap with TVK custom resources for monitoring
kubectl get configmap -n botkube
NAME DATA AGE
botkube-configmap 1 14d
kube-root-ca.crt 1 15d
2. Add TVK custom resources to the BotKube configmap
kubectl edit configmap botkube-configmap -n botkube
apiVersion: v1
data:
resource_config.yaml: |
recommendations: true
resources:
- events:
- all
name: triliovault.trilio.io/v1/licenses
namespaces:
ignore:
- null
include:
- all
- events:
- all
name: triliovault.trilio.io/v1/targets
namespaces:
ignore:
- null
include:
- all
- events:
- all
name: triliovault.trilio.io/v1/policies
namespaces:
ignore:
- null
include:
- all
- events:
- all
name: triliovault.trilio.io/v1/hooks
namespaces:
ignore:
- null
include:
- all
- events:
- all
name: triliovault.trilio.io/v1/backupplans
namespaces:
ignore:
- null
include:
- all
- events:
- all
name: triliovault.trilio.io/v1/backups
namespaces:
ignore:
- null
include:
- all
- events:
- all
name: triliovault.trilio.io/v1/restores
namespaces:
ignore:
- null
include:
- all
The above configuration is for the Cluster scoped installation of TVK. We have specified to include all namespaces for notifications using the following syntax namespaces: -> include: -> -all
In the case of namespace scoped installation of TVK, you can include only the specific namespace where TVK is installed.
3. This update will start populating any operations done on the TVK resources.
TVK target resource is created
TVK policy resource is created

Configure TVK Resource Commands to execute from Slack

  1. 1.
    You can expand the list of commands that can be executed from slack directly onto the Kubernetes resources and TVK resources.
kubectl edit configmap botkube-configmap -n botkube
2. Add the commands that can be executed on the TVK resources along with the verbs under settings.kubectl.commands.resources and settings.kubectl.commands.verbs section
settings:
clustername: east-2-rke-120
configwatcher: true
kubectl:
commands:
resources:
- deployments
- pods
- namespaces
- daemonsets
- statefulsets
- storageclasses
- nodes
- licenses
- policies
- hooks
- targets
- backupplans
- backups
- restores
- triliovaultmanagers
verbs:
- api-resources
- api-versions
- cluster-info
- describe
- diff
- explain
- get
- logs
- top
- auth
- create
- get
- edit
- delete
defaultNamespace: default
3. Once the Botkube configmap is updated, you can see the updated commands list from slack

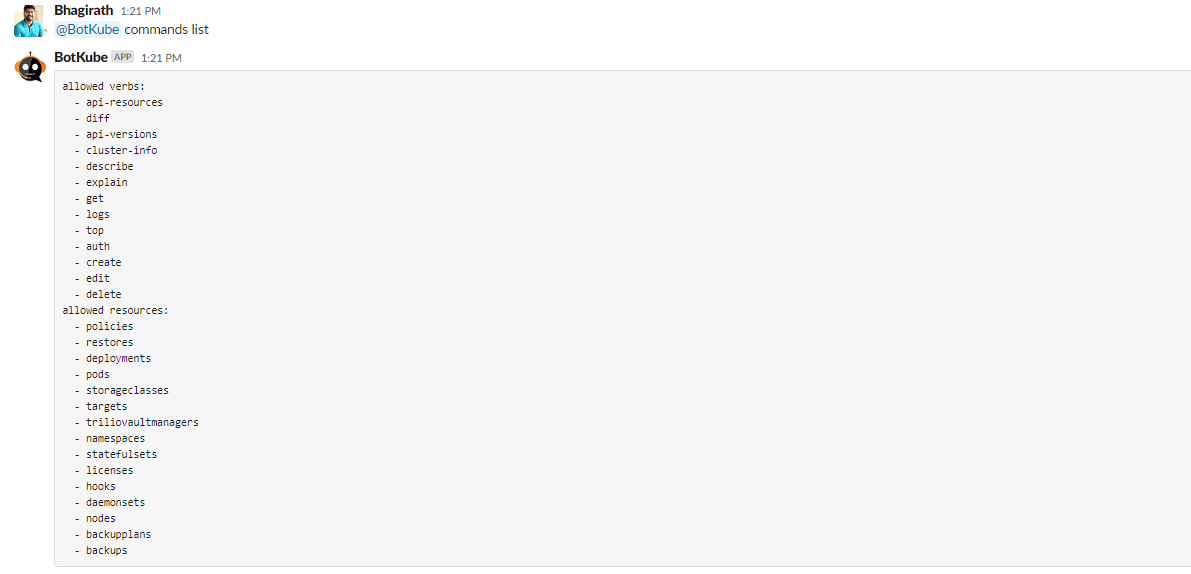

Commands lists on slack after updating the configmap

Usage of commands and verbs

You can execute above commands directly from slack to monitor the TVK resources

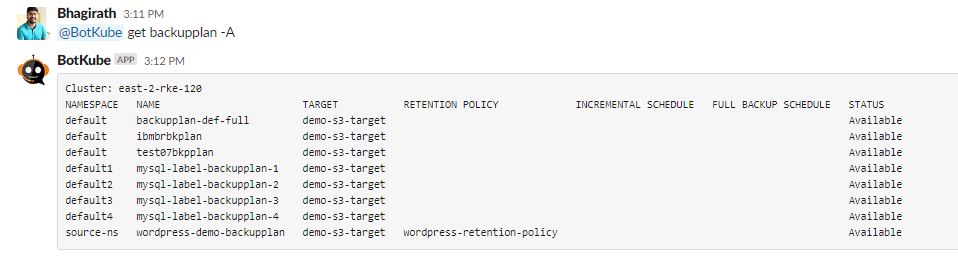

Get backupplan command execution from Slack

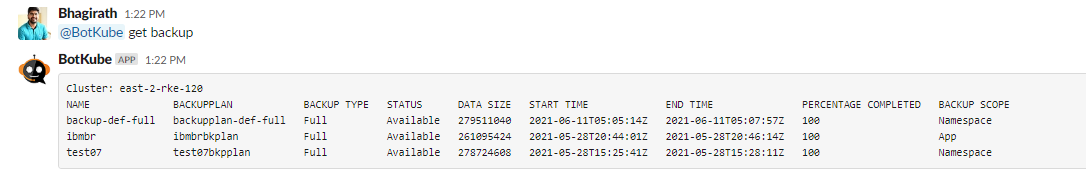

Get backup command execution from Slack

Remove BotKube from Kubernetes cluster

We installed BotKube using helm, execute the following command to completely remove BotKube and related resources.
helm delete --purge botkube -n botkube
For integrations with other tools such as Mattermost, Microsoft Teams, Discord, Elastic Search configurations, users can follow BotKube documentations.
