Namespaces
This page provides users with an overview of all the namespaces associated with a selected cluster.
This page provides users with an overview of all the namespaces associated with a selected cluster.
This is the default landing page for Backup & Recovery. It provides a top-level overview of all your cluster Namespaces and provides links to take actions for each. When a cluster is selected, this page displays your backup and restore options available for all Namespaces within the selected cluster.
Log in to the T4K Management Console.
From the left panel menu, click Backup & Recovery.
Select one of your clusters from the left panel menu, which displays a dropdown menu for you to select from.
From this dropdown menu, select Namespaces.

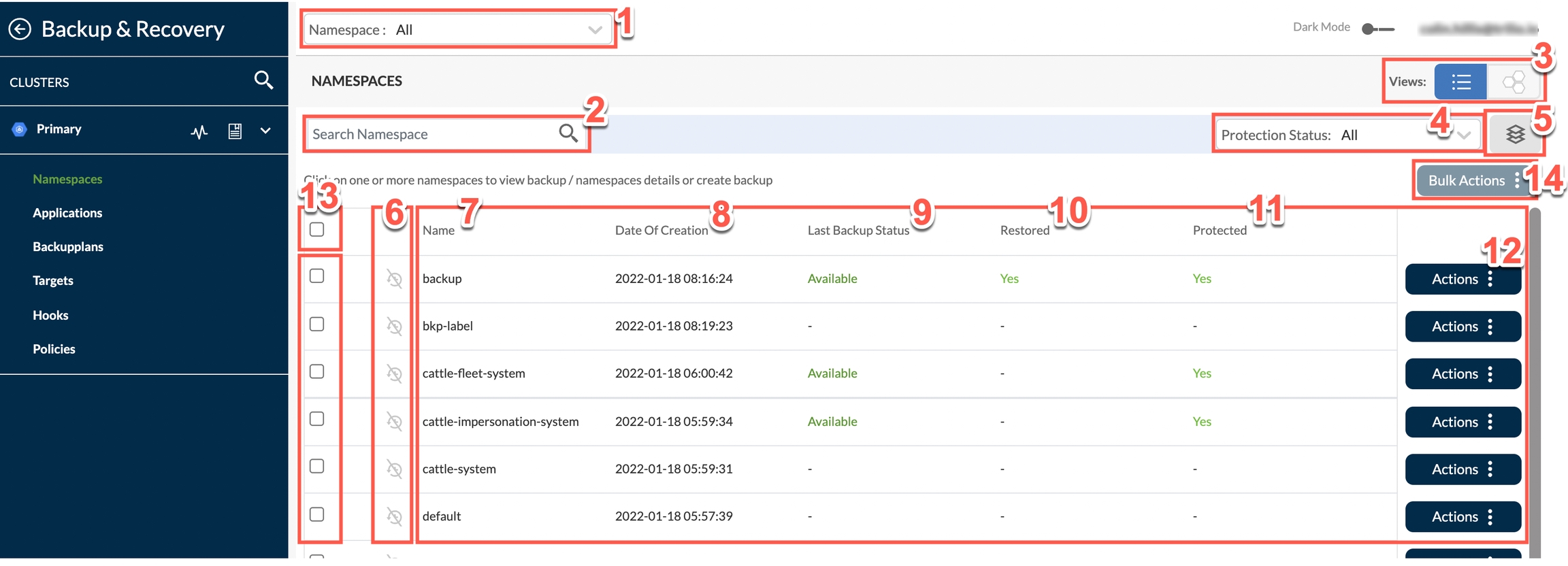

From the page displayed, choose what you want to configure or action. Refer to the following image and descriptions in the associated table.
| Field No. | Field/Button Name | Description |
|---|---|---|
1 | Namespace selector | This dropdown lists all namespaces in the selected cluster alphabetically. Click one or all to display the selection. |
2 | Search Namespace | A search field to find the namespace that you want to display. The list filters as you type. |
3 | Views | View namespaces in list or honeycomb format. |
4 | Protection Status | This dropdown enables the list to be filtered by protection status; e.g. Protected, Unprotected, or All. |
5 | Layers icon | This displays a toggle switch at the top of each column on the page, which controls if columns are hidden or displayed. |
6 | Schedule icon | This icon shows whether a namespace has had a schedule configured or not. |
7 | Name | This column provides the name of each namespace. |
8 | Date of creation | This column displays the date and time on which the namespace was created. |
9 | Last backup status | To show availability of successful backups. |
10 | Restored | To show if a restore was executed. |
11 | Protected | An indicator of whether the namespace is protected by backups or not. |
12 | Actions | This button displays a dropdown menu of further actions that can be taken in relation to a single cluster. Menu options are: - Create Backup - View Backup & Restore summary - View Namespace details - View Target summary Refer to Namespaces - Actions. |
13 | Selector checkboxes | Checkboxes may be selected/deselected to facilitate the execution of bulk actions. Use the table header row checkbox to select/deselect all listed namespaces. |
14 | Bulk Actions | Refer to Namespaces - Bulk Actions. |
