KubeConfig Authenticaton

This page describes authenticating to the Trilio Management Console via a KubeConfig file

T4K UI supports authentication through kubeconfig files - token, certificate, auth-provider, etc. As a result, any user of the Kubernetes cluster can log into the UI, view information, and perform operations based on their permissions and authorization as per their RBAC.

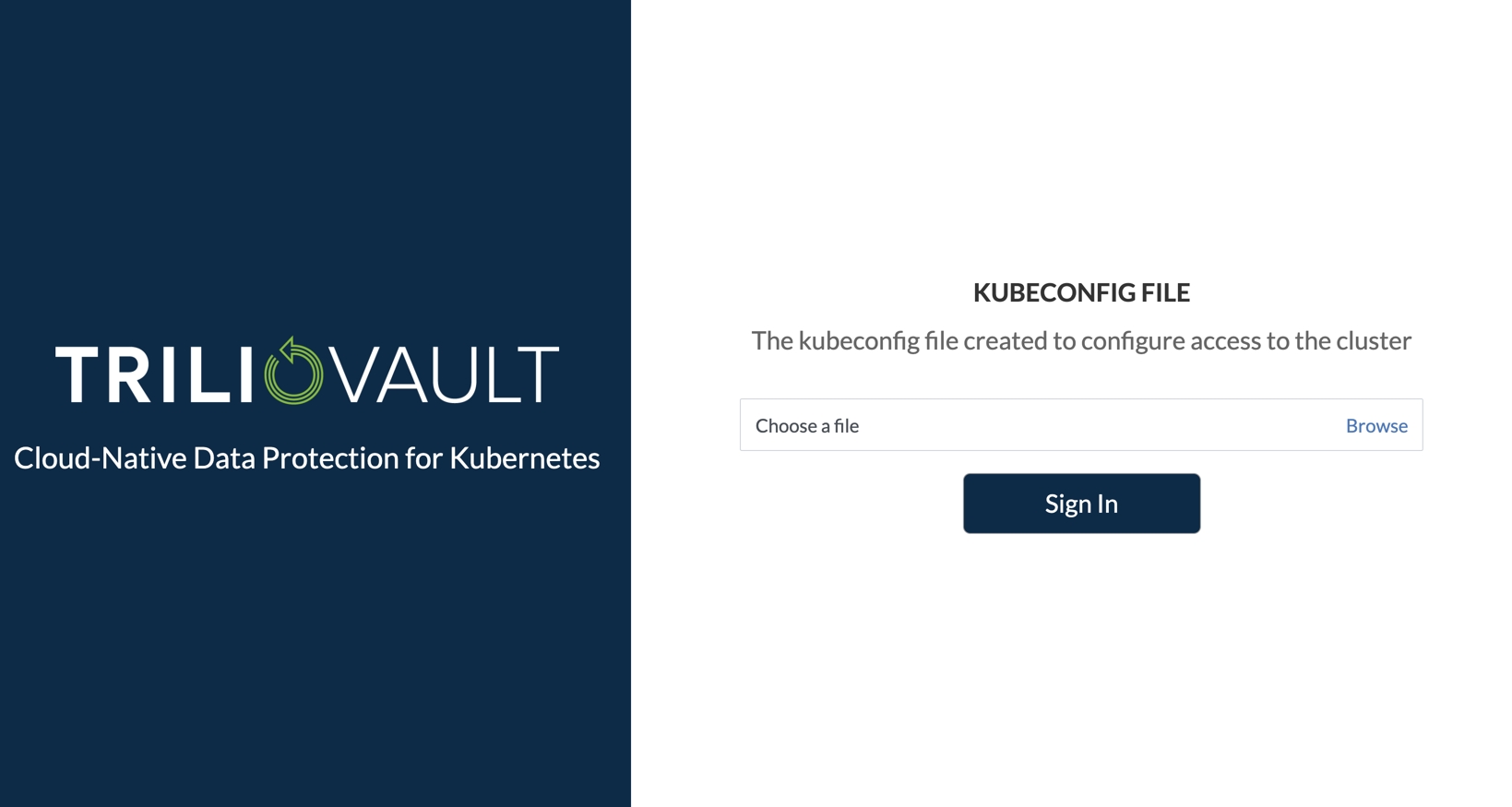

Trilio for Kubernetes Login Screen

'Exec' or 'Auth Provider' flags in Kubeconfig

Some Kubernetes clusters may contain cloud-specific exec action or use auth-provider configuration to fetch the authentication token within the kubeconfig file. Since the binaries for the specific cloud service may not available on the setup where the user is providing the config file, T4K may not be able to fetch the token and populate it in the kubeconfig.

In order to support authentication for these cloud providers, follow the steps below to create a kubeconfig file with a custom kubeconfig consisting of a service account token and cluster data.

GKE/EKS supported kubeconfig file use local credentials file to generate authentication token which can be used to access the kubernetes cluster. Hence, or refer to this page to use a workaround for using the credentials file to login T4K UI

DigitalOcean supports download of the kubeconfig file directly from the Kubernetes cluster page shown under "Access Cluster Config File" which can be used for authentication to the Trilio Management Console. If you are using doctl CLI to generate a kubeconfig file, it contains an exec section with custom commands that may not be recognized by the Trilio Management Console. Hence, or refer to this page to use a workaround for the kubeconfig generated through doctl.

Create a Service Account

To create a service account on Kubernetes, leverage kubectl and a service account spec. Create a YML file name sa.yml that looks like the one below:

   apiVersion: v1
   kind: ServiceAccount
   metadata:
   name: svcs-acct-dply #any name you'd like

Create the service account:

kubectl create -f sa.yaml

Fetch the name of the secrets used by the service account

kubectl describe serviceAccounts svcs-acct-dply

   Name:               svcs-acct-dply
   Namespace:          default
   Labels:             <none>
   Annotations:        <none>

   Image pull secrets: <none>
   Mountable secrets:  svcs-acct-dply-token-h6pdj
   Tokens:             svcs-acct-dply-token-h6pdj

Fetch the token from the secret

kubectl describe secrets svcs-acct-dply-token-h6pdj

   Name:           svcs-acct-dply-token-h6pdj
   Namespace:      default
   Labels:         <none>
   Annotations:    kubernetes.io/service-account.name=svcs-acct-dply
            kubernetes.io/service-account.uid=c2117d8e-3c2d-11e8-9ccd-42010a8a012f

   Type:   kubernetes.io/service-account-token

   Data
   ====
   ca.crt:     1115 bytes
   namespace:  7 bytes
   token:      eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCJ9.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby
   9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJkZWZhdWx0Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZWNyZXQubmFtZSI6InNoaXBwYW
   JsZS1kZXBsb3ktdG9rZW4tN3Nwc2oiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC5uYW1lIjoic2hpcHBhYmxlLW
   RlcGxveSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VydmljZS1hY2NvdW50LnVpZCI6ImMyMTE3ZDhlLTNjMmQtMTFlOC05Y2NkLTQyMD
   EwYThhMDEyZiIsInN1YiI6InN5c3RlbTpzZXJ2aWNlYWNjb3VudDpkZWZhdWx0OnNoaXBwYWJsZS1kZXBsb3kifQ.ZWKrKdpK7aukTRKnB5SJwwov6Pj
   aADT-FqSO9ZgJEg6uUVXuPa03jmqyRB20HmsTvuDabVoK7Ky7Uug7V8J9yK4oOOK5d0aRRdgHXzxZd2yO8C4ggqsr1KQsfdlU4xRWglaZGI4S31ohCAp
   J0MUHaVnP5WkbC4FiTZAQ5fO_LcCokapzCLQyIuD5Ksdnj5Ad2ymiLQQ71TUNccN7BMX5aM4RHmztpEHOVbElCWXwyhWr3NR1Z1ar9s5ec6iHBqfkp_s
   8TvxPBLyUdy9OjCWy3iLQ4Lt4qpxsjwE4NE7KioDPX2Snb6NWFK7lvldjYX4tdkpWdQHBNmqaD8CuVCRdEQ

Get the certificate info for the cluster

Every cluster has a certificate that clients can use to encrypt traffic. Fetch the certificate and write to a file by running the following command.

   kubectl config view --flatten --minify > cluster-cert.txt
   cat cluster-cert.txt

    apiVersion: v1
    clusters:
    - cluster:
        certificate-authority-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURDekNDQWZPZ0F3SUJBZ0lRZmo4VVMxNXpuaGRVbG
    15a3AvSVFqekFOQmdrcWhraUc5dzBCQVFzRkFEQXYKTVMwd0t3WURWUVFERXlSaVl6RTBOelV5WXkwMk9UTTFMVFExWldFdE9HTmlPUzFrWmpSak5tU
    XlZemd4TVRndwpIaGNOTVRnd05EQTVNVGd6TVRReVdoY05Nak13TkRBNE1Ua3pNVFF5V2pBdk1TMHdLd1lEVlFRREV5UmlZekUwCk56VXlZeTAyT1RN
    MUxUUTFaV0V0T0dOaU9TMWtaalJqTm1ReVl6Z3hNVGd3Z2dFaU1BMEdDU3FHU0liM0RRRUIKQVFVQUE0SUJEd0F3Z2dFS0FvSUJBUURIVHFPV0ZXL09
    odDFTbDBjeUZXOGl5WUZPZHFON1lrRVFHa3E3enkzMApPUEQydUZyNjRpRXRPOTdVR0Z0SVFyMkpxcGQ2UWdtQVNPMHlNUklkb3c4eUowTE5YcmljT2
    tvOUtMVy96UTdUClI0ZWp1VDl1cUNwUGR4b0Z1TnRtWGVuQ3g5dFdHNXdBV0JvU05reForTC9RN2ZpSUtWU01SSnhsQVJsWll4TFQKZ1hMamlHMnp3W
    GVFem5lL0tsdEl4NU5neGs3U1NUQkRvRzhYR1NVRzhpUWZDNGYzTk4zUEt3Wk92SEtRc0MyZAo0ajVyc3IwazNuT1lwWDFwWnBYUmp0cTBRZTF0RzNM
    VE9nVVlmZjJHQ1BNZ1htVndtejJzd2xPb24wcldlRERKCmpQNGVqdjNrbDRRMXA2WXJBYnQ1RXYzeFVMK1BTT2ROSlhadTFGWWREZHZyQWdNQkFBR2p
    JekFoTUE0R0ExVWQKRHdFQi93UUVBd0lDQkRBUEJnTlZIUk1CQWY4RUJUQURBUUgvTUEwR0NTcUdTSWIzRFFFQkN3VUFBNElCQVFCQwpHWWd0R043SH
    JpV2JLOUZtZFFGWFIxdjNLb0ZMd2o0NmxlTmtMVEphQ0ZUT3dzaVdJcXlIejUrZ2xIa0gwZ1B2ClBDMlF2RmtDMXhieThBUWtlQy9PM2xXOC9IRmpMQ
    VZQS3BtNnFoQytwK0J5R0pFSlBVTzVPbDB0UkRDNjR2K0cKUXdMcTNNYnVPMDdmYVVLbzNMUWxFcXlWUFBiMWYzRUM3QytUamFlM0FZd2VDUDNOdHJM
    dVBZV2NtU2VSK3F4TQpoaVRTalNpVXdleEY4cVV2SmM3dS9UWTFVVDNUd0hRR1dIQ0J2YktDWHZvaU9VTjBKa0dHZXJ3VmJGd2tKOHdxCkdsZW40Q2R
    jOXJVU1J1dmlhVGVCaklIYUZZdmIxejMyVWJDVjRTWUowa3dpbHE5RGJxNmNDUEI3NjlwY0o1KzkKb2cxbHVYYXZzQnYySWdNa1EwL24KLS0tLS1FTk
    QgQ0VSVElGSUNBVEUtLS0tLQo=
        server: https://35.203.181.169
      name: gke_jfrog-200320_us-west1-a_cluster
    contexts:
    - context:
        cluster: gke_jfrog-200320_us-west1-a_cluster
        user: gke_jfrog-200320_us-west1-a_cluster
      name: gke_jfrog-200320_us-west1-a_cluster
    current-context: gke_jfrog-200320_us-west1-a_cluster
    kind: Config
    preferences: {}
    users:
    - name: gke_jfrog-200320_us-west1-a_cluster
      user:
        auth-provider:
          config:
            access-token: ya29.Gl2YBba5duRR8Zb6DekAdjPtPGepx9Em3gX1LAhJuYzq1G4XpYwXTS_wF4cieZ8qztMhB35lFJC-DJR6xcB02oXX
    kiZvWk5hH4YAw1FPrfsZWG57x43xCrl6cvHAp40
            cmd-args: config config-helper --format=json
            cmd-path: /Users/ambarish/google-cloud-sdk/bin/gcloud
            expiry: 2018-04-09T20:35:02Z
            expiry-key: '{.credential.token_expiry}'
            token-key: '{.credential.access_token}'
          name: gcp

Copy two pieces of information from above certificate-authority-data and server

Create a kubeconfig file

From the steps above, you should have the following pieces of information

• token

• certificate-authority-data

• server

Create a file called sa-kconfig and paste the following content to it

  apiVersion: v1
  kind: Config
  users:
  - name: svcs-acct-dply
    user:
    token: <replace this with token info>
    clusters:
  - cluster:
    certificate-authority-data: <replace this with certificate-authority-data info>
    server: <replace this with server info>
    name: self-hosted-cluster
    contexts:
  - context:
    cluster: self-hosted-cluster
    user: svcs-acct-dply
    name: svcs-acct-context
    current-context: svcs-acct-context

Replace the placeholder above with the information gathered so far

• replace the token

• replace the certificate-authority-data

• replace the server

You can either choose to export the created kubeconfig file after that or move/copy it to $HOME/.kube/ location

Create ClusterRole and ClusterRoleBinding

After you have your kubeconfig file ready and exported/moved to .kube/config, Create a RoleBinding to bind the service account created from the above steps with ClusterRole. The role should have minimum permission required to access the T4K.

   apiVersion: rbac.authorization.k8s.io/v1
   kind: ClusterRole
   metadata:
      name: svcs-role
   rules:
   - apiGroups: ["triliovault.trilio.io"]
     resources: ["*"]
     verbs: ["get", "list"]
   - apiGroups: ["triliovault.trilio.io"]
     resources: ["policies"]
     verbs: ["create"]
   - apiGroups: ["triliovault.trilio.io"]
     resources: ["secrets"]
     verbs: ["create"]

   apiVersion: rbac.authorization.k8s.io/v1
   kind: ClusterRoleBinding
   metadata:
     name: sample-clusterrrolebinding
   roleRef:
     apiGroup: rbac.authorization.k8s.io
     kind: ClusterRole
     name: svcs-role
   subjects:
   - kind: ServiceAccount
     name: svcs-acct-dply
     namespace: default

You can login using this kubeconfig.
