T4K Components
The section describes the architecture of the Trilio for Kubernetes product.
The section describes the architecture of the Trilio for Kubernetes product.

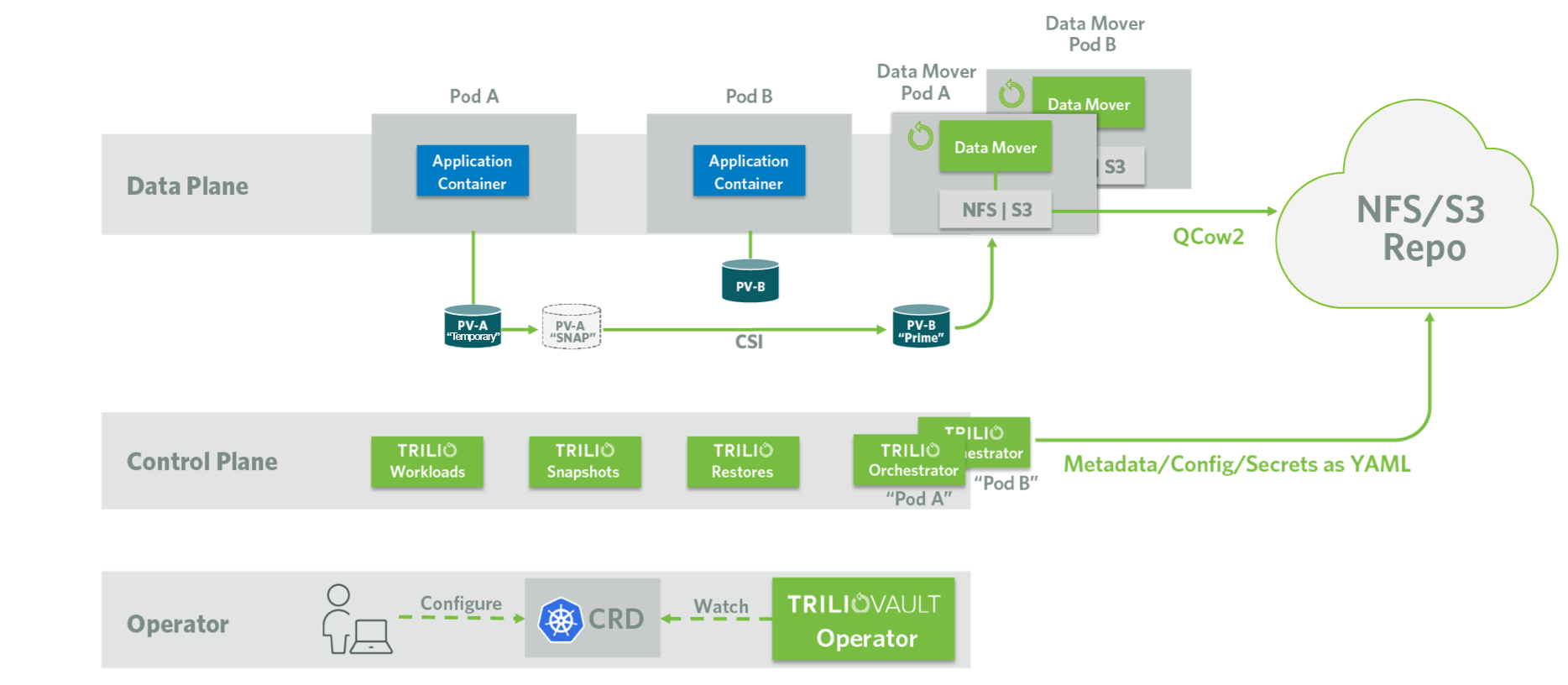

Trilio for Kubernetes is a cloud native application with an architecture that makes it Kubernetes native. Custom Resource Definition (CRD) makes it's API layer and etcd it's database. It's divided into two main components: Application and Operator. Application is the core part which handles backup, recovery through CRD's and controllers. Operator manages the lifecycle of the application. It takes care of application installation, upgrades, high availability, etc. The application layer is been kept decoupled with the operator, because of which our operator for Kubernetes can be easily replaced with the OLM(Operator Lifecycle Manager) framework of OpenShift.
Trilio for Kubernetes comes with it's own operator. It's a helm based operator. It is managed by a CRD called TrilioVaultManager. This operator takes care of the lifecycle of the application. The TrilioVaultManager contains configuration like scope io the application (Namespaced/Clustered), version of application, deployment namespace, etc. Operator accordingly will take care of creating, updating the application instance. Operator will take care of auto recovery in case one of the application components goes down.
Trilio for Kubernetes is also available via the Operator Lifecycle Manage (OLM) framework. It can be deployed from the embedded OperatorHub within RedHat OpenShift.
Trilio application comprises of several CRD's and their corresponding controllers. It comes with it's own webhook server which manages the validation and mutation of it's CRD instances. Controllers reconcile on the events generated by the operations done on the Custom Resources. All the controllers are clubbed together and forms the control plane. For execution of the operation, controllers spawn multiple Kubernetes job resources parallely which take care of the execution of the operation. All those Kubernetes jobs makes up the execution layer.
The Control Plane consists of various CRDs and their Controllers. Among them following are the four main controllers
Target CRD holds the information about a Target which is our data store to store the backups. Target controller reconciles on Target CRD. Reconciliation loop of the Target controller checks if the target is accessible and validates the access by performing sample CRUD operation. In case the validation is successful it markes the Target CR as available.
Only Target with Available state can be used for backup/restore.
BackupPlan CRD (including ClusterBackupPlan) defines the components to backup, their quiescing strategy, their automated backup schedule, their backup retention strategy and all the information needed for backup. The BackupPlan Controller is responsible for validating the backupplan and creating cronjob resources required to handle the automated backup operation
Backup CRD (including ClusterBackup) represents a backup operation. The Backup Controller reconciles on the Backup CRD and executes the backup operation. It executes the backup operation by creating multiple Kubernetes jobs. It first creates a snapshotter job which handles collecting all the metadata, identifying data components from the metadata and uploading metadata to the target. It then triggers data snapshot through CSI for all the data components identified in the snapshot step. As the CSI snapshots completes it uploads the data to the target in the form of incremental QCOW2 images using datamover. Once the backup is complete it performs logic to squash backups as per the retention policy defined in the BackupPlan
Restore CRD (including ClusterRestore) represents a restore operation. The Restore Controller reconciles on the Restore CRD and executes the restore operation. Similar to backup controller, restore controller also executes restore logic by creating multiple Kubernetes jobs. It first validates if the restore can be performed by creating a validation job. Once the validation succeeds it starts data restore by creating datamover jobs in parallel. After successful restore of data, metadata is restored by metaprocessor job.
Webhook server takes care of moderating the API requests on Trilio API group custom resources. It contains both the validation and mutation logic. Validation logic is mainly focused to check if the incoming input is correct. Mutation logic is used for defaulting and for deriving any data before the request goes to Kubernetes apiserver.
A management console is supported and shipped with the product. There are several pods, namely Ingress-controller, web and backend that are deployed with the product. There are service and ingress objects related to these pods which along with the pods themselves support the management console for Trilio for Kubernetes.
Trilio leverages Dex to support OIDC and LDAP authentication protocols. A pod running Dex is provided as part of the control plane.
The Data Plane includes datamover Pods that are primarily responsible for transferring data between persistent volumes and the backup media. Trilio works with Persistent Volumes (PVs) using CSI interface.
Trilio does not support in-tree storage drivers or flex volumes. Our support starts with CSI snapshots alpha driver and hence a minimum of Kubernetes 1.12 is required. If you are using Kubernetes version 1.16 or less, you may need to enable alpha gate for CSI snapshot functionality.
The Control Plane identifies the physical volumes of the application, creates a snapshot of each PV, creates a new PV from the snapshot and spawns a datamover Pod for each PV it creates. If the application has 2 PV's, then Control Plane spawns 2 data mover Pods one for each PV to backup. The datamover specification also includes references to the backup target object where the backup data needs to be copied.
Trilio backup images are QCOW2 images. Every time a backup of an application is done, Trilio creates a QCOW2 image for each PV in the application. The datamover Pod uses a Linux based tool called qemu-img to convert data from PV to a QCOW2 image as part of the backup process. During the restore process, a datamover converts QCOW2 a image to PV.
Datamover Pods are created only for the purpose of backing or restoring a particular PV. Once the data transfer operation is done, they cease to exist. The number of datamover Pods at any time depends on the number of backup jobs and their applications PVs.
The Trilio datamover supports transferring data from/to either NFS or S3 compatible storage. The backup target is part of datamover spec. If the backup target is NFS, the share is mounted to the datamover and data transfer is initiated to the NFS share. S3 compatible storage is handled differently as S3 does not support POSIX compatible file system API calls. The S3 bucket is mounted through a FUSE plugin as a local file system mount point and the backup and restore operations are performed with respect to the FUSE mount point. You can read more on S3 fuse plugin implementations at S3 as Backup Target.
