# T4K Integration with Observability Stack
## Introduction
The Observability Stack is a pre-packaged distribution for monitoring, logging, and dashboarding and can be installed into any existing Kubernetes cluster. It includes many of the most popular open-source observability tools with Prometheus, Grafana, Promtail\*\*,\*\* and Loki. The observability stack provides a straightforward, maintainable solution for analyzing server traffic and identifying potential deployment problems.
### T4K Installation with Observability using Trilio Operator
To install the operator with observability enabled, run the latest helm chart with the following parameter set.
```
helm repo add triliovault-operator https://charts.k8strilio.net/trilio-stable/k8s-triliovault-operator
helm install tvm triliovault-operator/k8s-triliovault-operator --set observability.enabled=true
```
### Observability Stack Configurable Parameters
The following table lists the configuration parameters of the observability stack
| Parameter | Description | Default |
| ---------------------------------------------------------------------------- | ------------------------------------------------------------------------------------------------------ | ------------------------------------- |
| `observability.enabled` | observability stack is enabled | false |
| `observability.name` | observability name for T4K integration | tvk-integration |
| `observability.logging.loki.enabled` | logging stack, loki is enabled | true |
| `observability.logging.loki.fullnameOverride` | name of the loki service | "loki" |
| `observability.logging.loki.persistence.enabled` | loki persistence storage enabled | true |
| `observability.logging.loki.persistence.accessModes` | loki persistence storage accessModes | ReadWriteOnce |
| `observability.logging.loki.persistence.size` | loki persistence storage size | 10Gi |
| `observability.logging.loki.config.limits_config.reject_old_samples_max_age` | loki config, maximum accepted sample age before rejecting | 168h |
| `observability.logging.loki.config.table_manager.retention_period` |
loki config, how far back tables will be kept before they are deleted. 0s disables deletion.
| 168h |
| `observability.logging.promtail.enabled` | logging stack, promtail is enabled | true |
| `observability.logging.promtail.fullnameOverride` | name of the promtail service | "promtail" |
| `observability.logging.promtail.config.clients.url` | loki url for promtail integration | "" |
| `observability.monitoring.prometheus.enabled` | monitoring stack, prometheus is enabled | true |
| `observability.monitoring.prometheus.fullnameOverride` | name of the prometheus service | "prom" |
| `observability.monitoring.prometheus.server.enabled` | prometheus server is enabled | true |
| `observability.monitoring.prometheus.server.fullnameOverride` | name of prometheus server service | "prom-server" |
| `observability.monitoring.prometheus.server.persistentVolume.enabled` | prometheus server with persistent volume is enabled | false |
| `observability.monitoring.prometheus.kubeStateMetrics.enabled` | prometheus kube state metrics is enabled | false |
| `observability.monitoring.prometheus.nodeExporter.enabled` | prometheus node exporter is enabled | false |
| `observability.monitoring.prometheus.pushgateway.enabled` | prometheus push gateway is enabled | false |
| `observability.monitoring.prometheus.alertmanager.enabled` | prometheus alert manager is enabled | false |
| `observability.visualization.grafana.enabled` | visualization stack, grafana is enabled | true |
| `observability.visualization.grafana.adminPassword` | grafana password for admin user | "admin123" |
| `observability.visualization.grafana.fullnameOverride` | name of grafana service | "grafana" |
| `observability.visualization.grafana.service.type` | grafana service type | "ClusterIP" |
Check the observability stack configuration by running the following command:
```
kubectl get pods -n
promtail-2zpcv 1/1 Running 0 2m16s
grafana-554cb4f55-q4q59 3/3 Running 0 2m15s
prom-server-786b8cf897-nglhh 2/2 Running 0 2m15s
k8s-triliovault-operator-85dfc877b8-5xqx9 1/1 Running 0 2m15s
loki-0 1/1 Running 0 2m15s
k8s-triliovault-admission-webhook-96db687bb-wnfh7 1/1 Running 0 62s
k8s-triliovault-control-plane-6b986c8fb9-zjbnj 2/2 Running 0 62s
k8s-triliovault-exporter-7b98cb7678-wxwvx 1/1 Running 0 62s
k8s-triliovault-ingress-nginx-controller-57b777f45b-dnjkv 1/1 Running 0 62s
k8s-triliovault-web-85c79c9c4f-djqqz 1/1 Running 0 62s
k8s-triliovault-web-backend-5c8c67c548-pcgvl 1/1 Running 0 62s
```

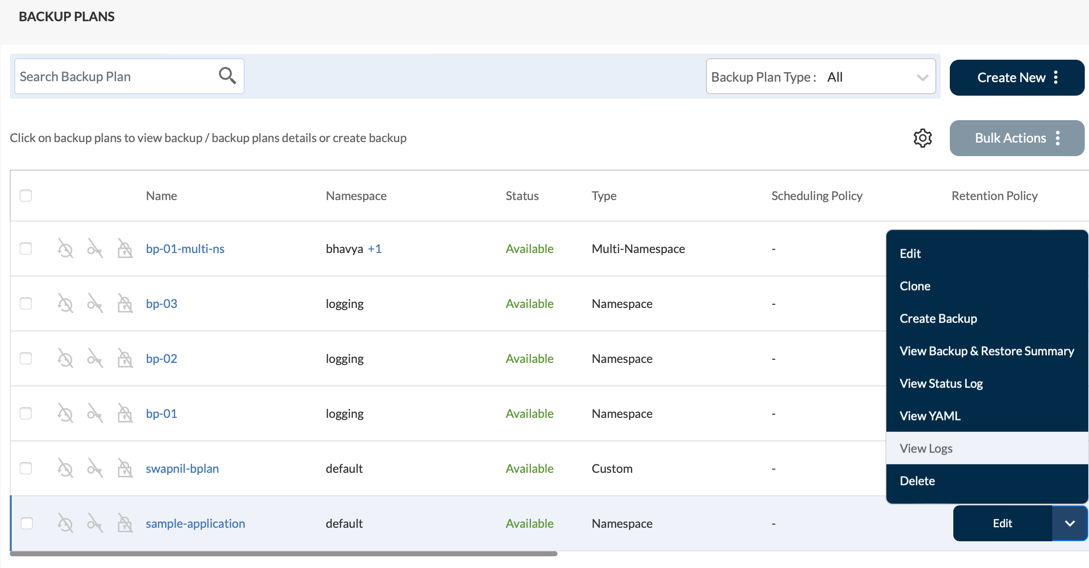

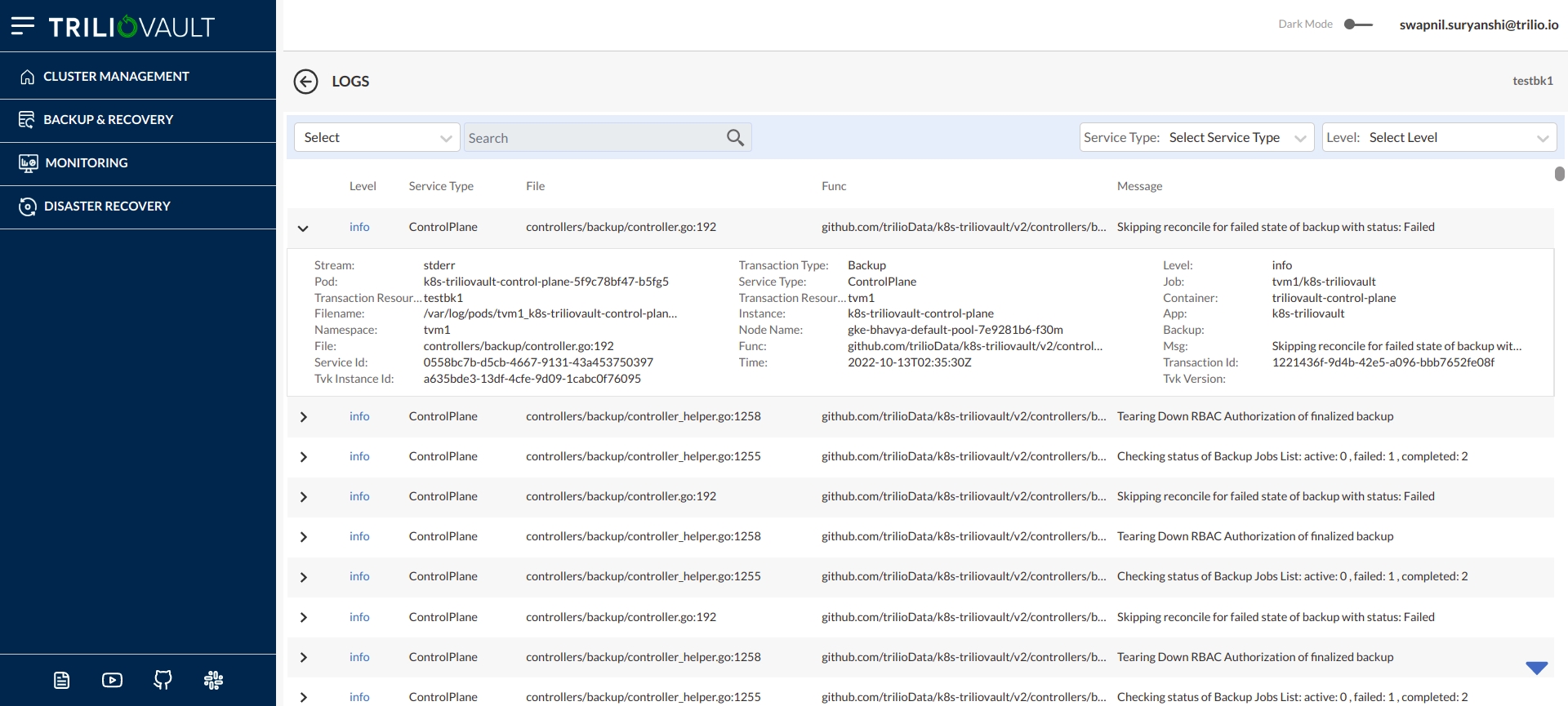

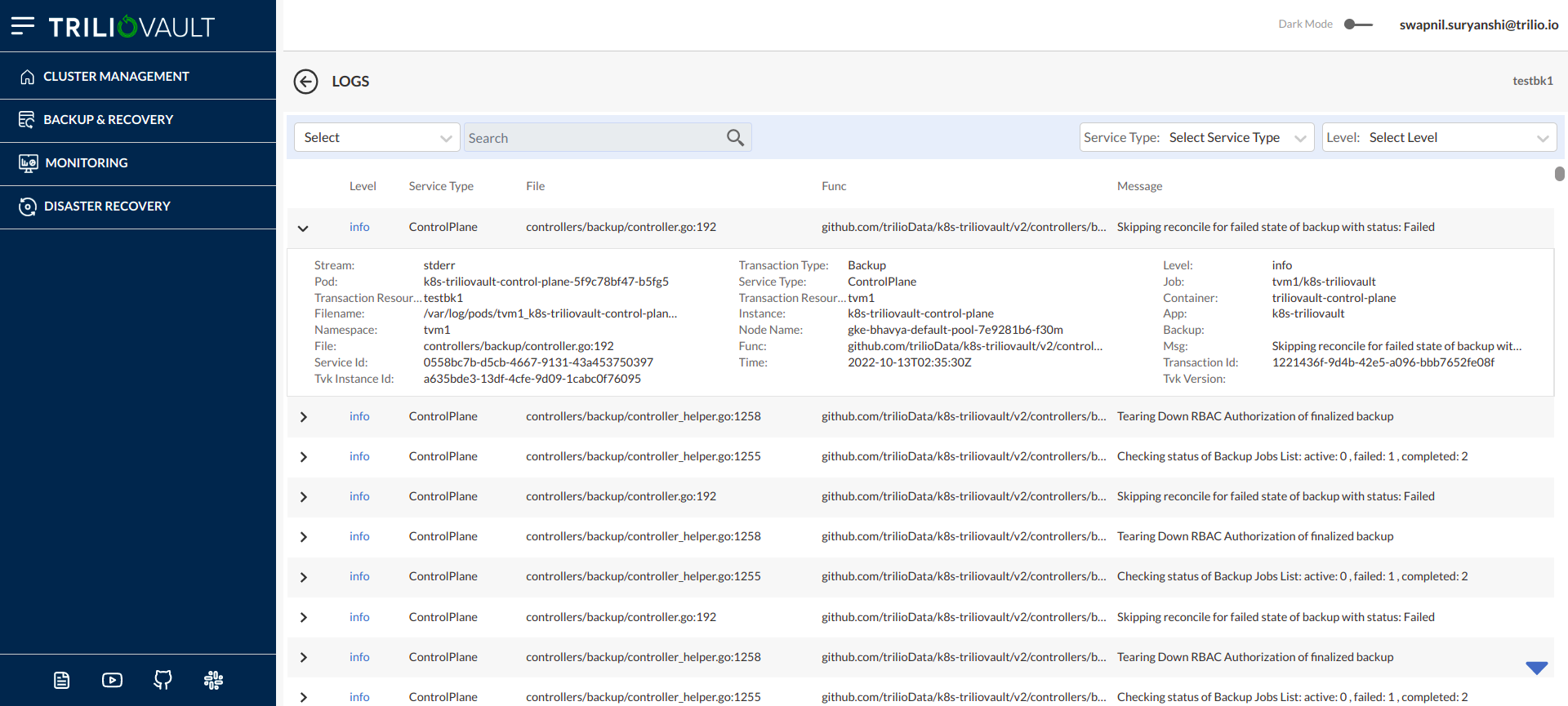

### View Logs From T4K UI
1. Login to T4K UI with preferred authentication
2. Select View logs on any required service or application

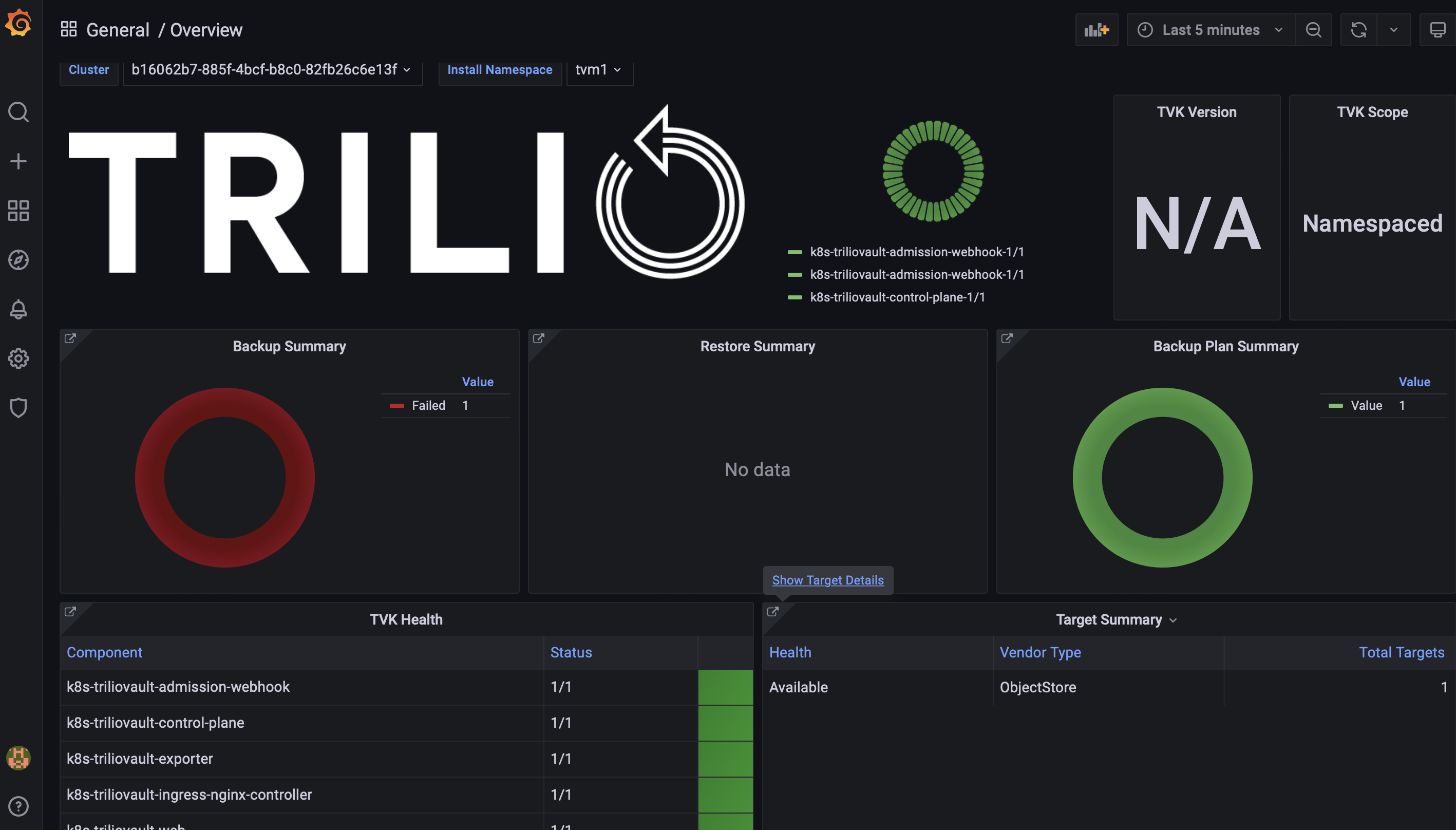

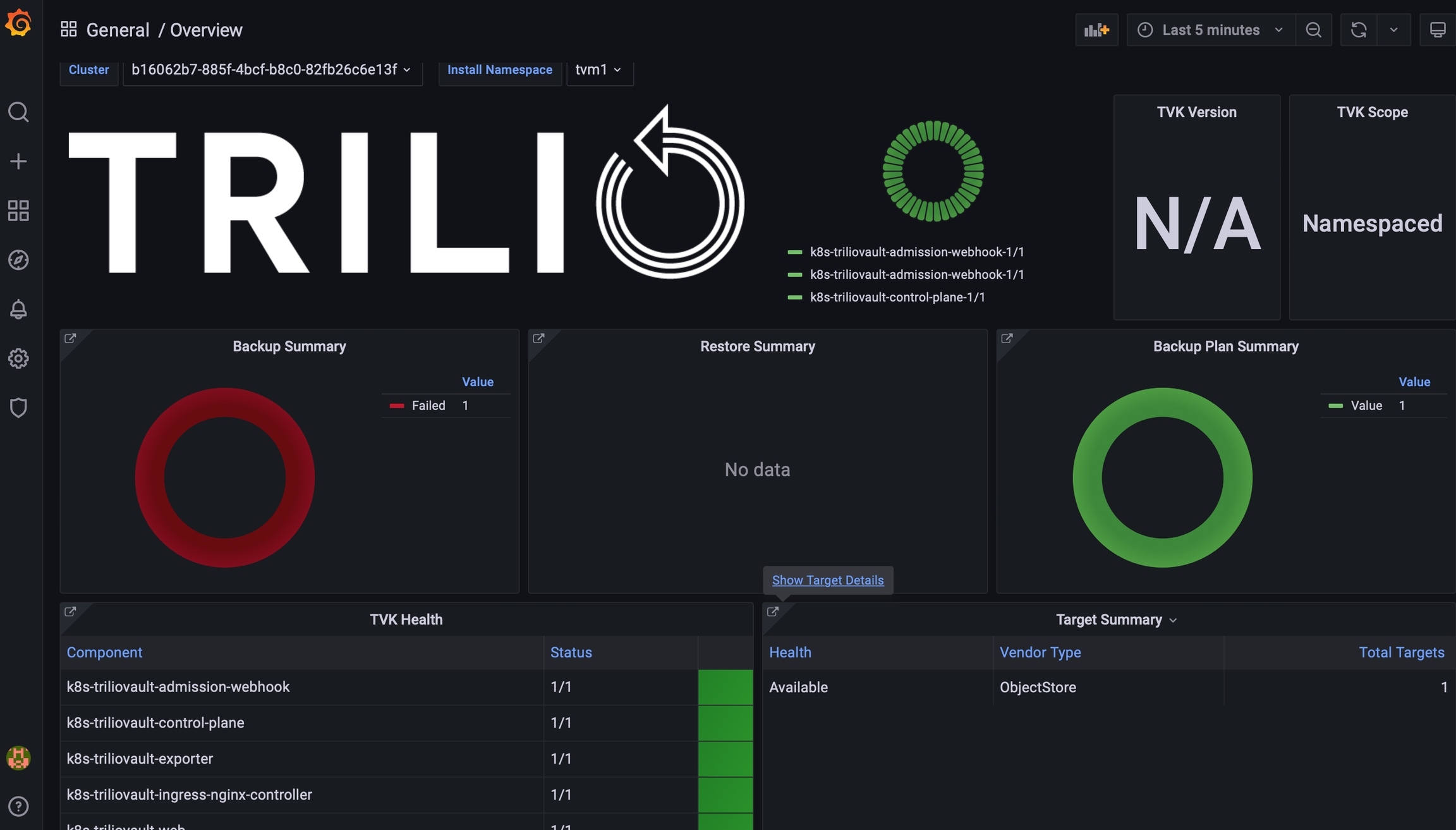

### Accessing Grafana Dashboards
```
Grafana Endpoint : http:///grafana
Login with default grafana credentials.
username: admin
password: admin123
```
