Backup Plans

This page provides users with an overview of all the backup plans associated with a selected cluster.

PreviousApplications - Bulk ActionsNextCreate Backup Plans

Last updated 1 year ago

Accessing Backup Plans

  1. Log in to the T4K Management Console.

  2. From the left panel menu, click Backup & Recovery.

  3. Select one of your clusters from the left panel menu, which displays a dropdown menu for you to select from.

  4. From this dropdown menu, select Backupplans.

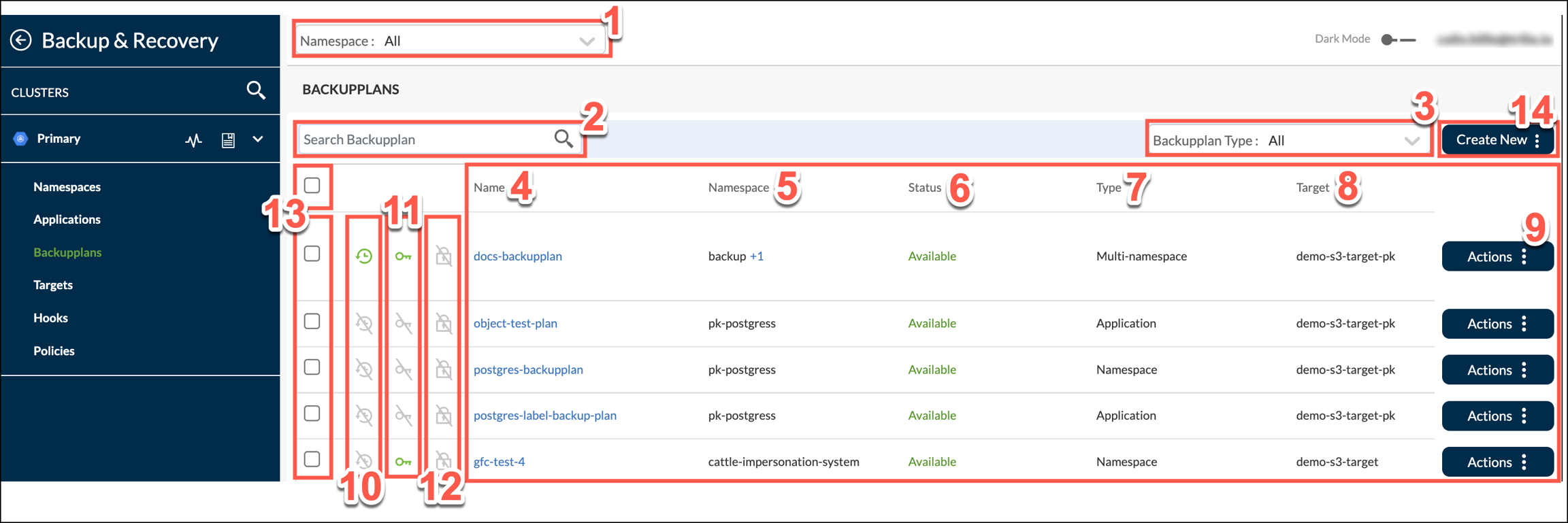

  5. From the page displayed, choose what you want to configure or action. Refer to the following image and descriptions in the associated table.

Backup Plans Overview

Field No.
Field/Button Name
Description

1

Namespace selector

This dropdown lists all namespaces in the selected cluster alphabetically. Click one or all to display the selection.

2

Search

The search field may be used to find the backup plan that you want to display. The list filters as you type.

3

Filters by backup plan type

Use this filter dropdown fields to narrow your search for backup plans of a certain type. The options are:

  • All

  • Operator

  • Helm

  • Custom

  • Namespace

  • Multi-namespace

4

Name

This column provides the name of each backup.

5

Namespace

This indicates which namespace that the backup plan is found in.

6

Status

To show availability of successful backups.

7

Type

This indicates what type of backup that it is: Application, Namespace, or Multi-namespace.

8

Target

This displays the target for the backup.

9

Actions

This button displays a dropdown menu of further actions that can be taken in relation to a single backup. Menu options are:

  • Edit

  • Create Backup

  • View Backup & Restore summary

  • View YAML

  • Delete

10

Schedule icon

This icon shows whether a backup has had a schedule configured or not.

11

Encrypted icon

This icon shows whether a backup is encrypted or not.

12

Immutable icon

This icon shows whether a backup is immutable or not.

13

Selector checkboxes

Checkboxes may be selected/deselected to facilitate the execution of comparing two YAML files associated with different backups. You cannot select more than two to compare.

14

Create New

Refer to:

Create a new backup plan by selecting this dropdown. Select from Application, Single Namespace, or Multi-namespace. Refer to:

Backup Plans - Actions
Create Backup Plans
Backup Plans page
