# Targets

## Accessing Targets

1. Log in to the T4K **Management Console**.
2. From the left panel menu, click **Backup & Recovery**.
3. Select one of your clusters from the left panel menu, which displays a dropdown menu for you to select from.
4. From this dropdown menu, select **Targets**.
5. From the page displayed, create new targets or take actions associated with existing targets. Refer to the following image and descriptions in the associated table.

## Targets Overview

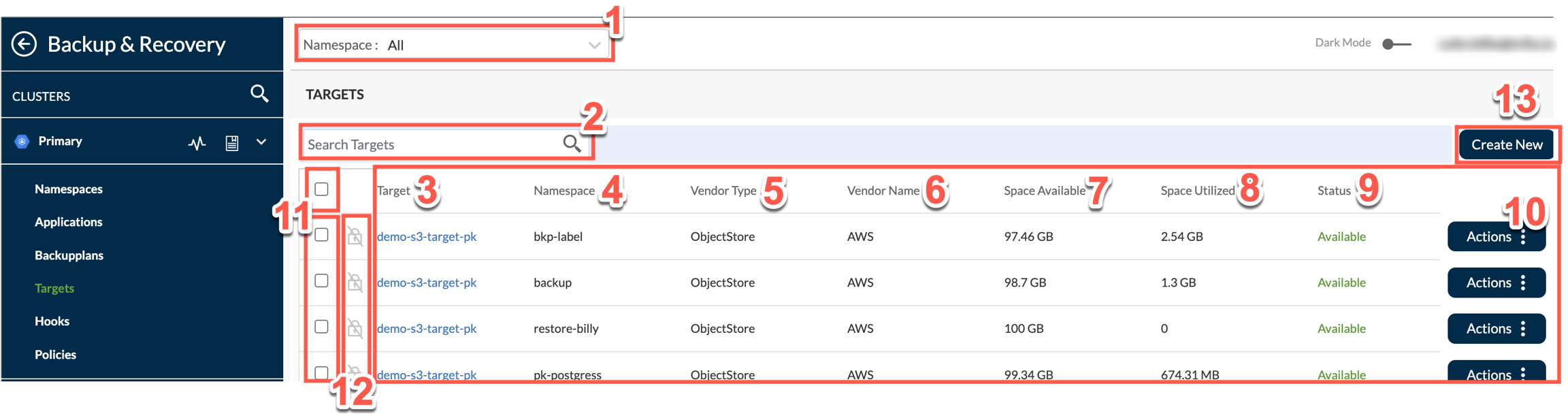

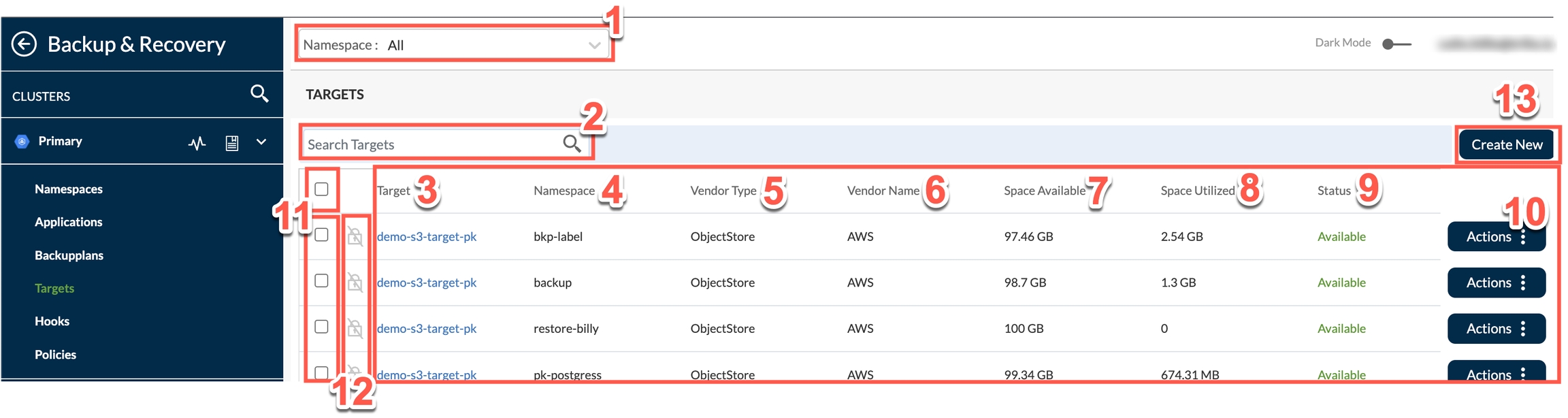

![](https://content.gitbook.com/content/TrewSrS6CmLdahLrZUjj/blobs/4D3cJBP89IxyUZq12wMM/backup-targets-1.png)

| Field No. | Field/Button Name   | Description                                                                                                                                                                                                                                                                                                                                                                                                                                                                        |
| --------- | ------------------- | ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| 1         | Namespace selector  | This dropdown lists all namespaces in the selected cluster alphabetically. Click one or all to display the selection.                                                                                                                                                                                                                                                                                                                                                              |
| 2         | Search              | The search field may be used to find the targets that you want to display. The list filters as you type.                                                                                                                                                                                                                                                                                                                                                                           |
| 3         | Target              | This column provides the name of each target.                                                                                                                                                                                                                                                                                                                                                                                                                                      |
| 4         | Namespace           | This indicates which namespace that the target is found in.                                                                                                                                                                                                                                                                                                                                                                                                                        |
| 5         | Vendor Type         | The type of vendor for the selected target.                                                                                                                                                                                                                                                                                                                                                                                                                                        |
| 6         | Vendor Name         | Name of the vendor for the selected target.                                                                                                                                                                                                                                                                                                                                                                                                                                        |
| 7         | Space Available     | Space available for backups                                                                                                                                                                                                                                                                                                                                                                                                                                                        |
| 8         | Space Utilized      | Space used for backups                                                                                                                                                                                                                                                                                                                                                                                                                                                             |
| 9         | Status              | This displays whether a successful backup is available or not.                                                                                                                                                                                                                                                                                                                                                                                                                     |
| 10        | Actions             | <p>This button displays a dropdown menu of further actions that can be taken in relation to a target. Menu options are:</p><ul><li><strong>Launch Browser</strong> (only available if browsing is enabled during target creation, or subsequent edit)</li><li><strong>Edit</strong></li><li><strong>Clone</strong></li><li><strong>View YAML</strong></li><li><strong>Delete</strong></li></ul><p>Refer to: <a data-mention href="targets/targets-actions">targets-actions</a></p> |
| 11        | Selector checkboxes | Checkboxes may be selected/deselected to facilitate the execution of comparing two YAML files associated with different backups. You cannot select more than two to compare.                                                                                                                                                                                                                                                                                                       |
| 12        | Immutable icon      | This icon shows whether a backup is immutable or not.                                                                                                                                                                                                                                                                                                                                                                                                                              |
| 13        | Create New          | Create a new backup plan by selecting this dropdown. Select from **Application**, **Single Namespace**, or **Multi-namespace**. Refer to: [create-target](https://docs.trilio.io/kubernetes/4.0.x/getting-started/using-trilio/getting-started-with-management-console/navigating-intro/backup-and-recovery/targets/create-target "mention")                                                                                                                                       |
