Workload Quotas

TrilioVault enables Openstack administrators to set Project Quotas against the usage of TrilioVault.
The following Quotas can be set:
Number of Workloads a Project is allowed to have
Number of Snapshots a Project is allowed to have
Number of VMs a Project is allowed to protect
Amount of Storage a Project is allowed to use on the Backup Target
Work with Workload Quotas via Horizon
The TrilioVault Quota feature is available for all supported Openstack versions and distributions, but only Train and higher releases include the Horizon integration of the Quota feature.
Workload Quotas are managed like any other Project Quotas.
1.Login into Horizon as user with admin role
2.Navigate to Identity
3.Navigate to Projects
4.Identify the Project to modify or show the quotas on
5.Use the small arrow next to "Manage Members" to open the submenu
6.Choose "Modify Quotas"
7.Navigate to "Workload Manager"
8.Edit Quotas as desired
9.Click "Save"

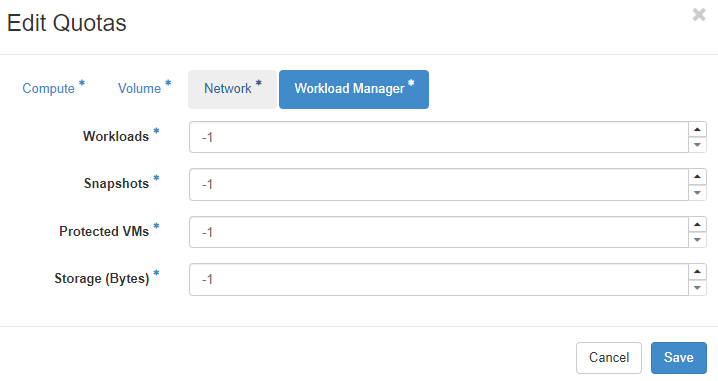

Screenshot of Horizon integration for Workload Manager Quotas
Work with Workload Quotas via CLI
List available Quota Types
TrilioVault is providing several different Quotas. The following command allows listing those.
TrilioVault 4.1 do not yet have the Quota Type Volume integrated.
Using this will not generate any Quotas a Tenant has to apply to.
workloadmgr project-quota-type-list
Show Quota Type Details
The following command will show the details of a provided Quota Type.
workloadmgr project-quota-type-show <quota_type_id>
<quota_type_id> ➡
ID of the Quota Type to show
Create a Quota
The following command will create a Quota for a given project and set the provided value.
workloadmgr project-allowed-quota-create --quota-type-id quota_type_id
                                         --allowed-value allowed_value
                                         --high-watermark high_watermark
                                         --project-id project_id
<quota_type_id> ➡
ID of the Quota Type to be created
<allowed_value>➡
 Value to set for this Quota Type
<high_watermark>➡
 Value to set for High Watermark warnings
<project_id>➡
 Project to assign the quota to
The high watermark is automatically set to 80% of the allowed value when set via Horizon.
A created Quota will generate an allowed_quota_object with its own ID. This is ID is needed when continuing to work with the created Quota.
List allowed Quotas
The following command lists all TrilioVault Quotas set for a given project.
workloadmgr project-allowed-quota-list <project_id>
<project_id>➡
 Project to list the Quotas from
Show allowed Quota
The following command shows the details about a provided allowed Quota.
workloadmgr project-allowed-quota-show <allowed_quota_id>
<allowed_quota_id> ➡
ID of the allowed Quota to show.
Update allowed Quota
The following command shows how to update the value of an already existing allowed Quota.
workloadmgr project-allowed-quota-update [--allowed-value <allowed_value>]
                                         [--high-watermark <high_watermark>]
                                         [--project-id <project_id>]
                                         <allowed_quota_id>
<allowed_value>➡
 Value to set for this Quota Type
<high_watermark>➡
 Value to set for High Watermark warnings
<project_id>➡
 Project to assign the quota to
<allowed_quota_id> ➡
ID of the allowed Quota to update
Delete allowed Quota
The following command will delete an allowed Quota and sets the value of the connected Quota Type back to unlimited for the affected project.
workloadmgr project-allowed-quota-delete <allowed_quota_id>
<allowed_quota_id> ➡
ID of the allowed Quota to delete
