Fine Tuning Resource Requests and Limits

This page provides a guideline on how to calculate the resource needs under various circumstances

In order to provide hardware recommendations to users, a series of tests were performed on T4K to measure the memory usage of the control plane, analyzer, web-backend and exporter resources. The tests were performed mainly based on:

• Number of Kubernetes resources

• Number of backups

Resource Based Consumption

In order to analyze the impact of resources on T4K, a T4K was set up with 1000 active namespace level backups, 50 backup plans (not running in schedule or creating backups), and 10k resources which contained 1 deployment, 10k services, 1500 config maps, and 750 secrets initially. In each iteration of tests, the backups were kept at 1000, and 10k resources were added until the cluster had 50k resources and 1000 backups.

Below table and graphs provide memory insights of control-plane, analyzer, web-backend and exporter:

Metrics

Load	Control Plane		Analyzer		Web Backend		Exporter
Resources/Backups	Memory (idle)	Memory (spike)	Memory (idle)	Memory (spike)	Memory (idle)	Memory (spike)	Memory (idle)	Memory (spike)
10k resources (1000 backups)	263	263	107	107	272	443	526	723
20k resources (1000 backups)	320	320	102	102	344	575	480	718
30k resources (1000 backups)	342	480	104	107	398	1130	486	650
40k resources (1000 backups)	391	553	111	159	443	1250	460	716
1650k resources (1000 backups)	462	650	140	179	515	1640	530	670
50k resources (1000 backups) - after restart	449	671	142	142	483	1370	-	-

Chart

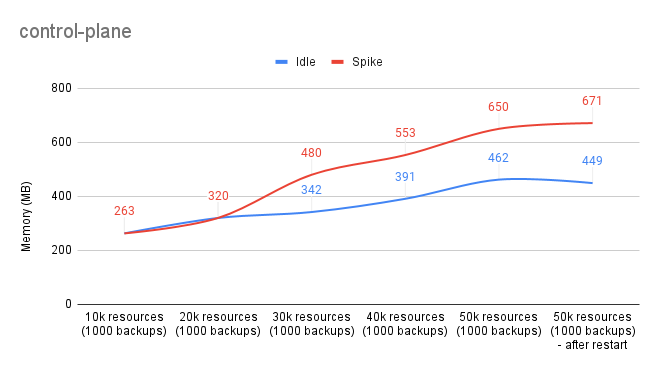

Resource Usage of Control Plane

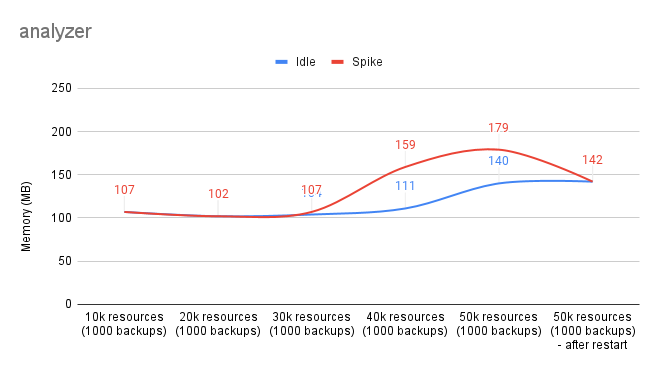

Resource Usage of Analyzer

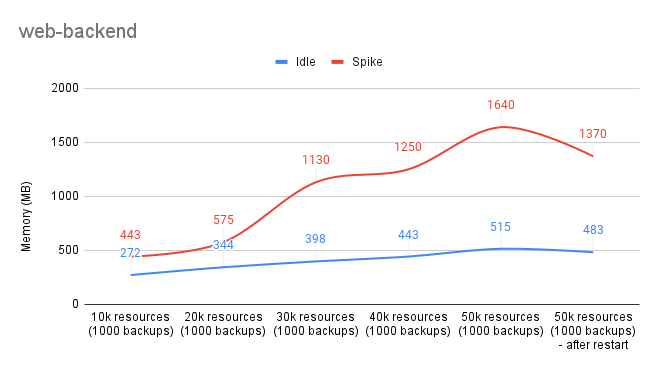

Resource Usage of Web Backend

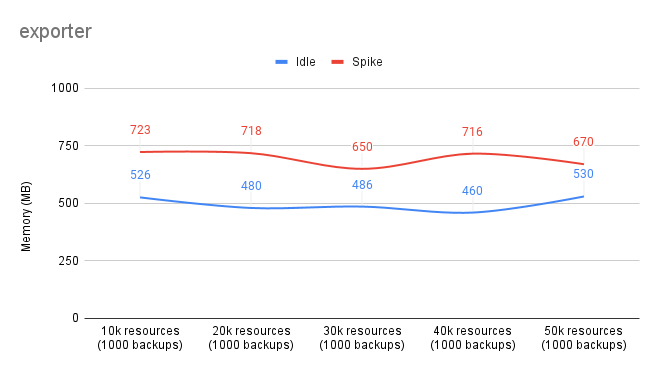

Resource Usage of Exporter

Addition of 10k resources consumes memory usage upto 150 MB, 52 MB and 555 MB in control-plane, analyzer and web-backend respectively while in case of exporter, addition of resources doesn't affect much in the memory consumption.

Resource Consumption During Backups

In order to analyze the impact of backups on T4K, initially, a T4K was setup with 10k resources which contained 1 deployment, 10k services, 1500 config maps and 750 secrets, ~50 active backups and 50 backup plans creating backups at the same time. In each iteration of tests, the resources were kept at 10k and 1000 backups were added until the cluster had 6k backups and 10k resources.

Below table and graphs provide memory insights of control-plane, analyzer, web-backend and exporter:

Metrics

Load	Control Plane		Analyzer		Web Backend		Exporter
Resources/Backups	Memory (idle)	Memory (spike)	Memory (idle)	Memory (spike)	Memory (idle)	Memory (spike)	Memory (idle)	Memory (spike)
10k resources (0-50 backups)	330	387	44	51	380	620	87	93
10k resources (1000 backups)	476	626	164	191	457	860	420	650
10k resources (2000 backups)	630	780	210	255	757	1190	1150	1410
10k resources (3300 backups)	750	960	310	400	912	1490	1500	1800
10k resources (6000 backups)	1060	1320	796	1002	1030	1700	-	-
10k resources (6000 backups) - after restart	552	-	382	-	558	1300	-	-

Chart

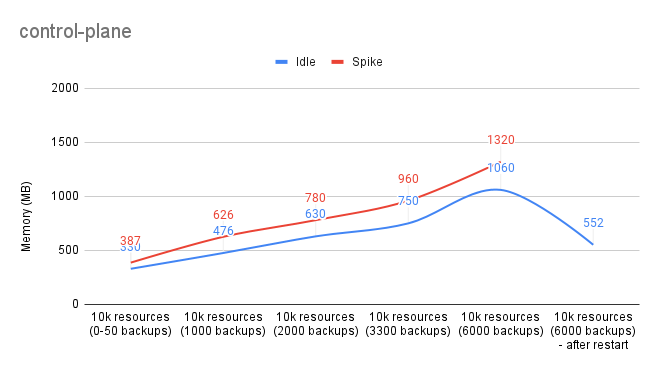

Control Plane Resource Consumption with Backups

Note: No spike was seen after the restart in above graph as all scheduled based backups were paused at that time

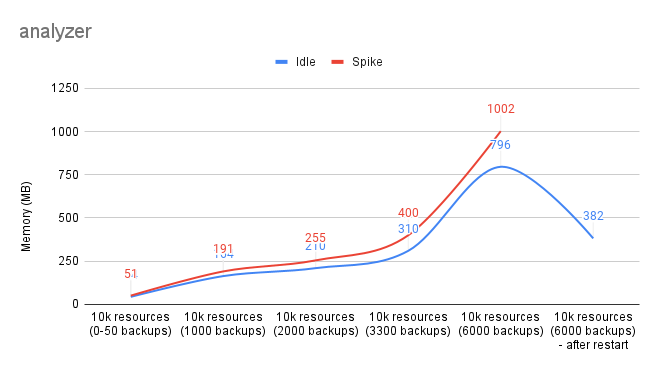

Analyzer Resource Consumption with Backups

Note: No spike was seen after the restart in above graph as all scheduled based backups were paused at that time

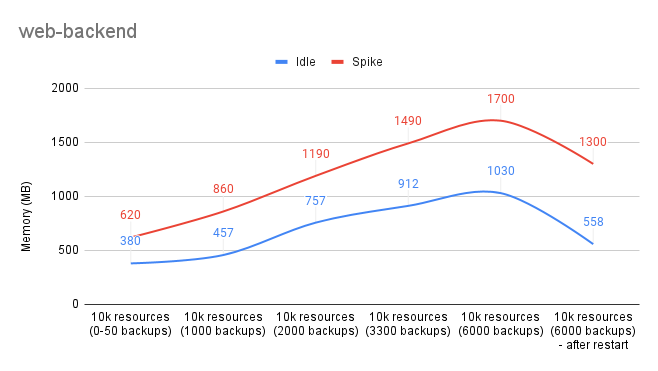

Web Backend Resource Consumption with Backups

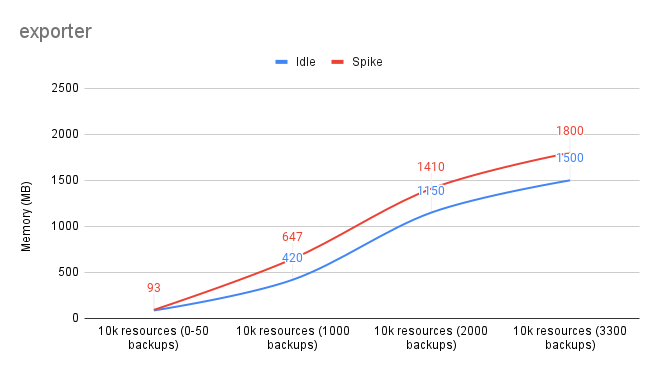

Exporter Resource Consumption with Backups

Addition of 1k backups consumes memory usage upto 239 MB, 200 MB, 330 MB and 750 MB in control-plane, analyzer, web-backend and exporter respectively.

Conclusion

control-plane, analyzer and exporter components consume more memory with increasing backups than increasing resources. The number of resources has small amount of effect on control-plane, analyzer and exporter components therefore, the number of backups factor should be taken into the account more while providing the memory limits for these containers. The control-plane spikes seem to be related to scheduled backup plans creating 50 backups every hour. The number of backups that are being created at the same time also contributes in memory spike seen in control-plane. The same spike isn't seen much in the resource based tests as the backup plans were not creating backups every hour.

web-backend on the other hand consume memory with both increasing backups and resources as it needs to cache every resources in the cluster.

Considering the metrics from the tests above, below recommendations can be followed to configure control-plane, analyzer, web-backend and exporter's memory limits:

Component	Recommendation
control-plane	1 GB for 10k resources, 1k backups
analyzer	512 MB for 10k resources, 1k backups
web-backend	1 GB for 10k resources, 1k backups
exporter	1 GB for 1k backups
